DOOR & WINDOWS
5.0

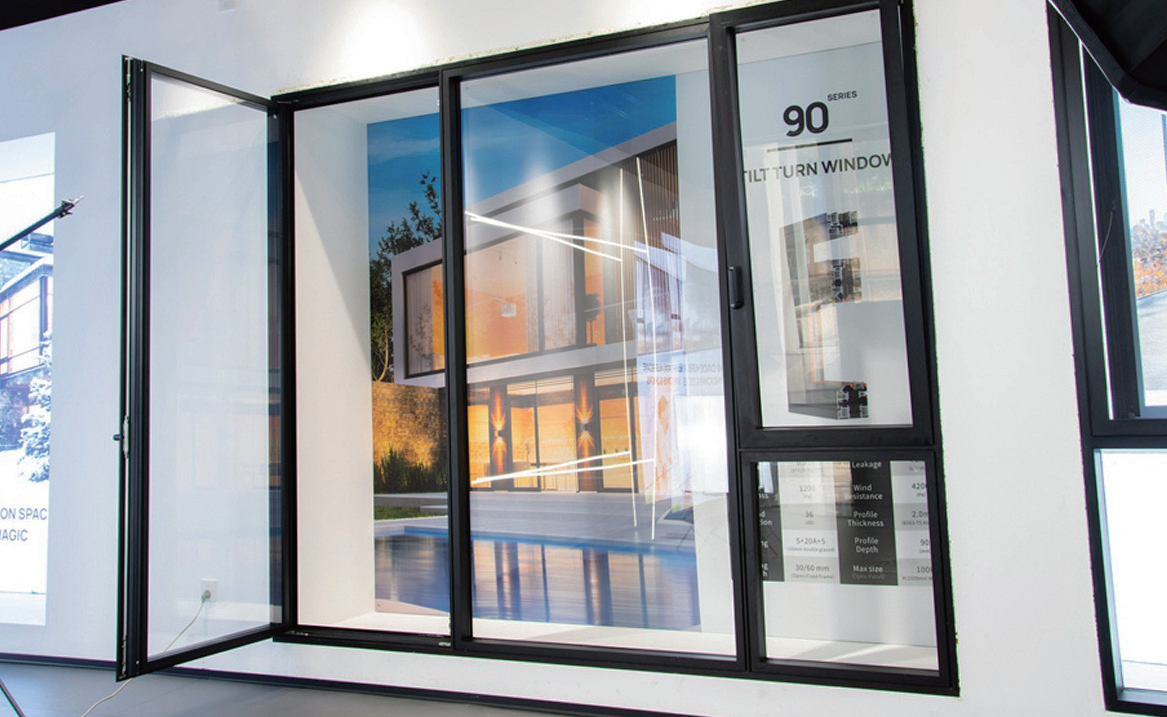

NWA90

REQUEST A QUOTE
Product Parameters
Specifications
U-Value

1.39 W/ m2·K

0.246 BTU/h·ft2·℉

Air Leakage

Class AW According to AAMA/WDMA/CSA 101

Water Tightness

Class AW According to AAMA/WDMA/CSA 101

Wind Resistance

Class AW According to AAMA/WDMA/CSA 101

Sound Insulation

40dB

Aluminum Profile & Thickness

6063-T5 Aluminum

0.07" (1.8mm)

Standard Glass Configuration

3/16"+ 13/16"Ar+3/16" (5mm+20Ar+5mm) Clear Glass

System Basic Depth

Frame: 3 9/16" (90mm)

Swing Glass Panel: 3 9/16" (90mm)

Profile Face Width

Frame: 2 1/4" (58mm)

Swing Frame: 2 3/8" (60mm)

Suggested Size (Swing Panel)

Height: 19 11/16" ~ 72" (500 ~ 1830mm)

Width: 19 11/16" ~ 29 1/2" (500 ~ 750mm)

Security

Multi-point lock

Colors

PVDF Black / White / Gray or Custom Colors

View full details
Why You'll Love It

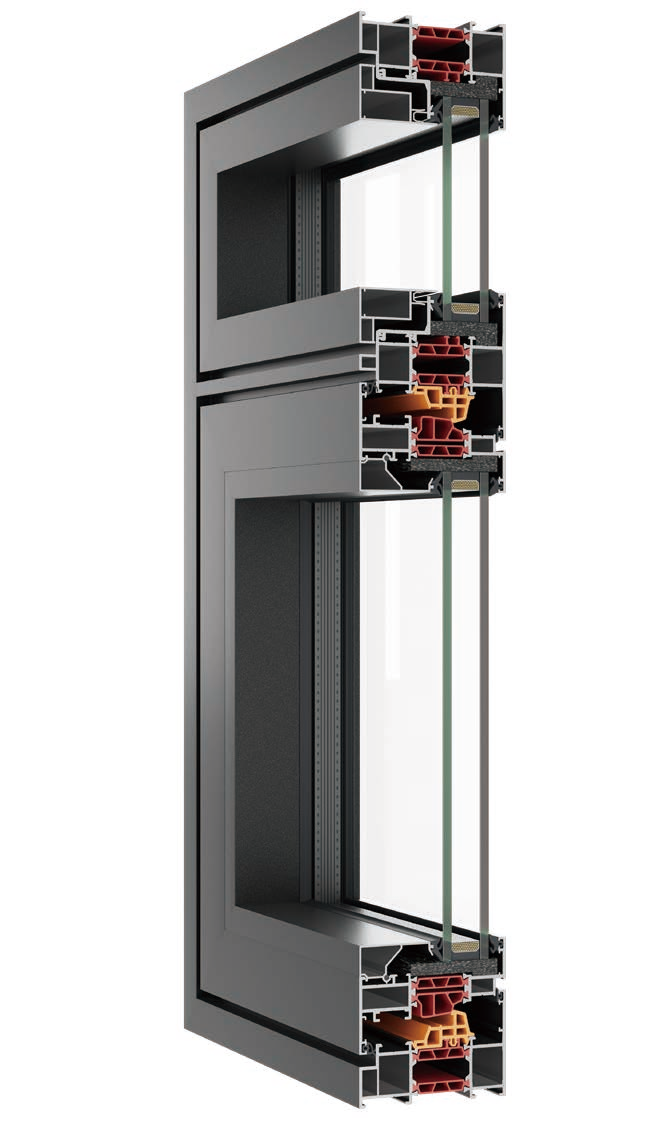

3 LAYERS PERFECT WEATHER SEALING

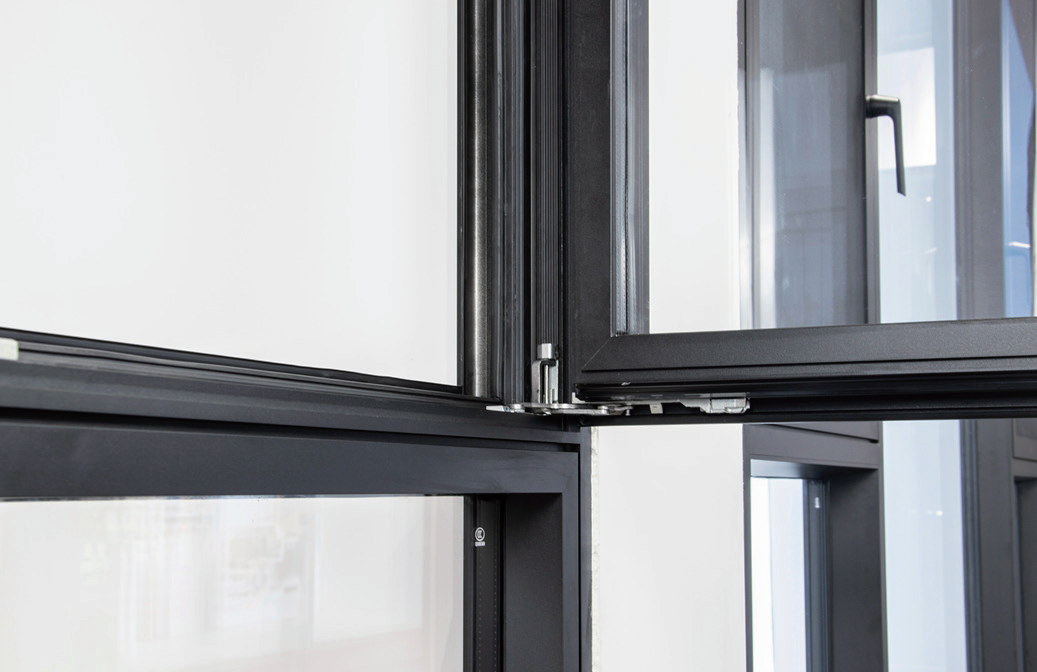

The triple EPDM sealing strips create dual air-tight chambers an inner high-pressure chamber & an outer low-pressure compartment. During inclement weather, rainwater is efficiently drained throughthe low-pressure chamber's drainage outlets, preventing any wateraccumulation that could lead to leakage. Furthermore, our load-bearing hinges are strategically housed within the high-pressure chamber, shielding them from prolonged moisture exposure. This critical design element significantly extends the product's operational lifespan by safeguarding mechanical components against weathering deterioration.

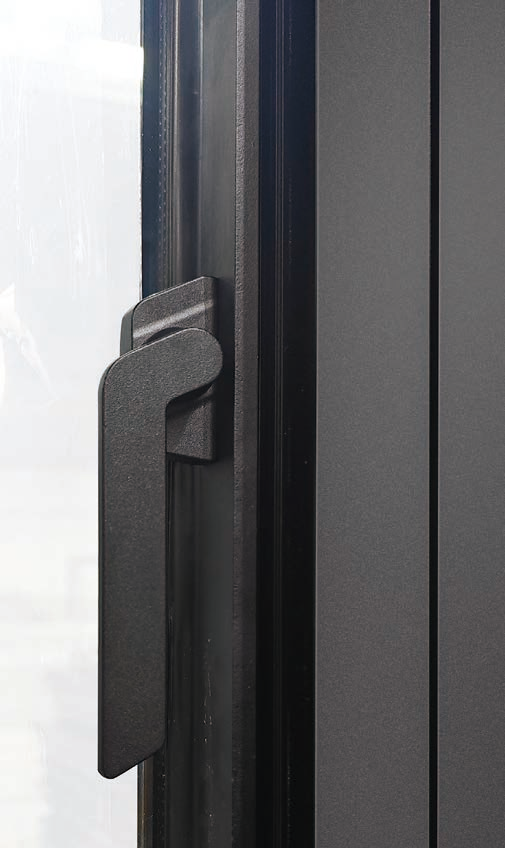

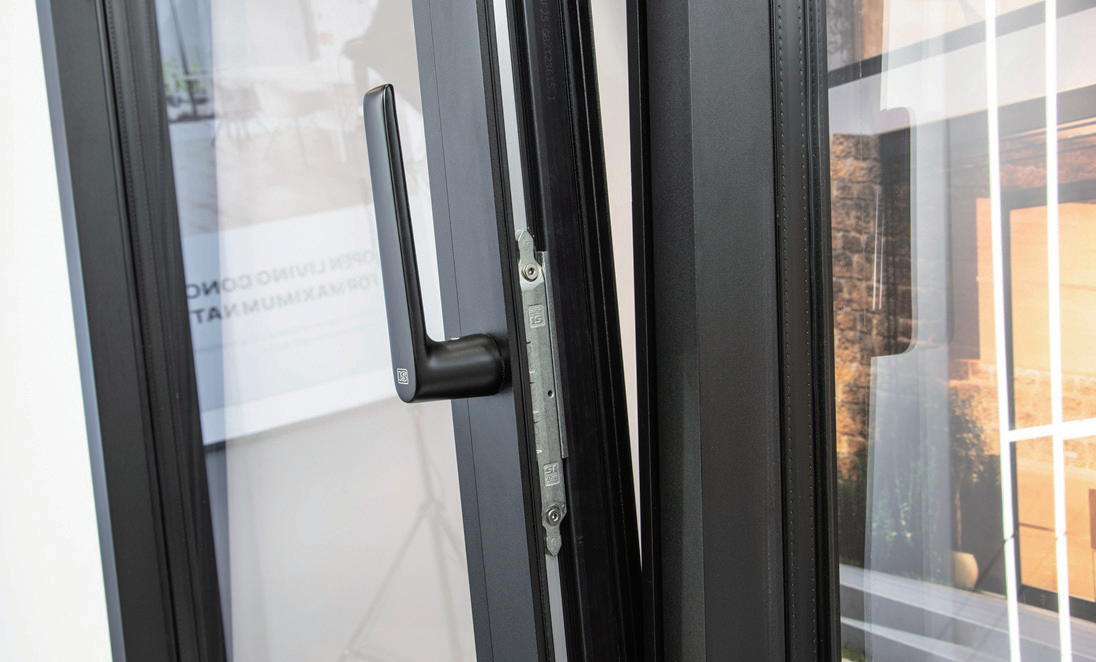

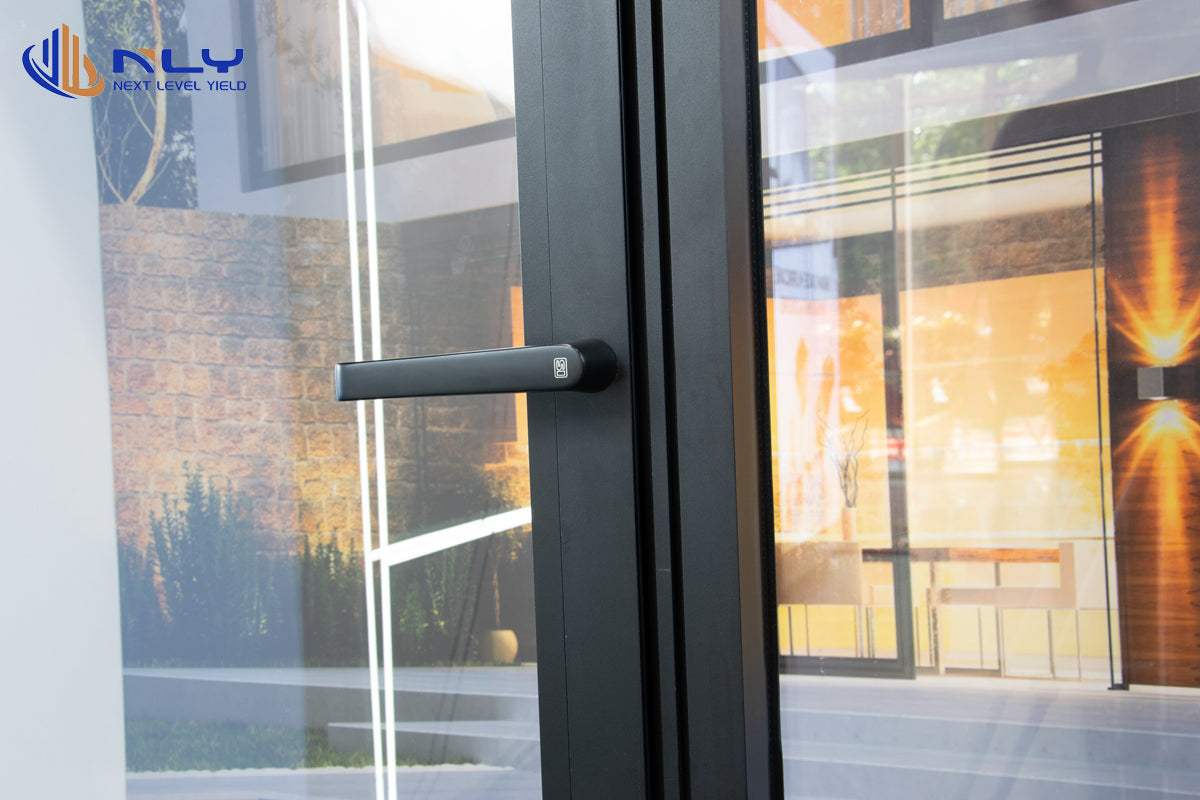

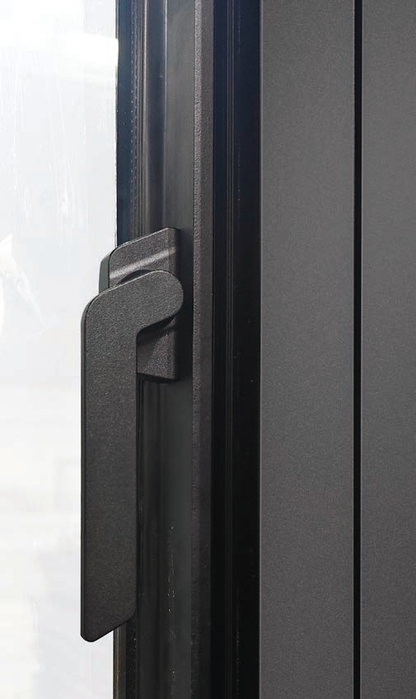

MINIMALIST HARDWARES
The handle features a unique surface treatment and is available in a variety of color options. With such a wide range of choices, it can seamlessly complement any home design, offering a more cohesive and modern aesthetic. It operates smoothly and quietly, without any squeaking when opening or closing the door — providing a peaceful and enjoyable living environment.

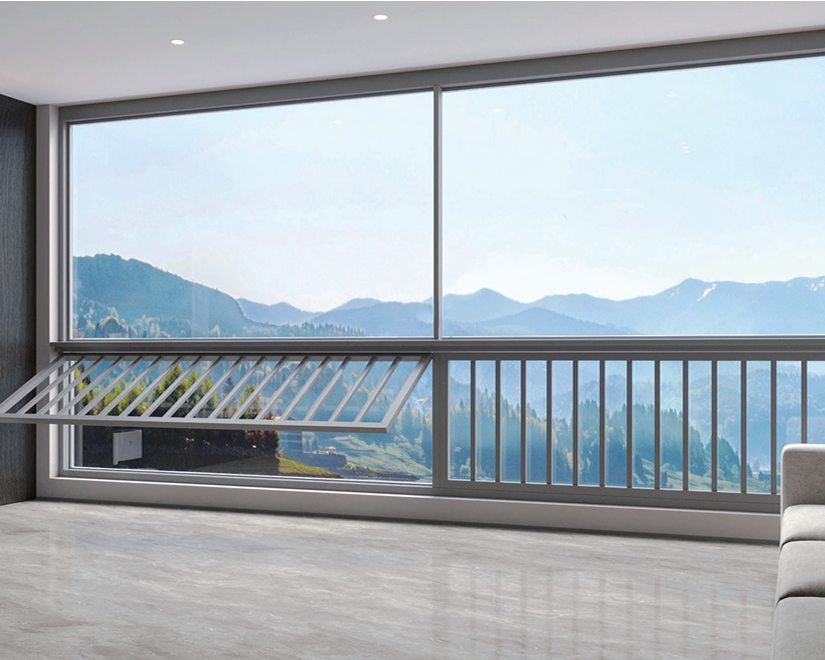

Bringing Light and Life Into Every Space
