DOOR & WINDOWS
5.0

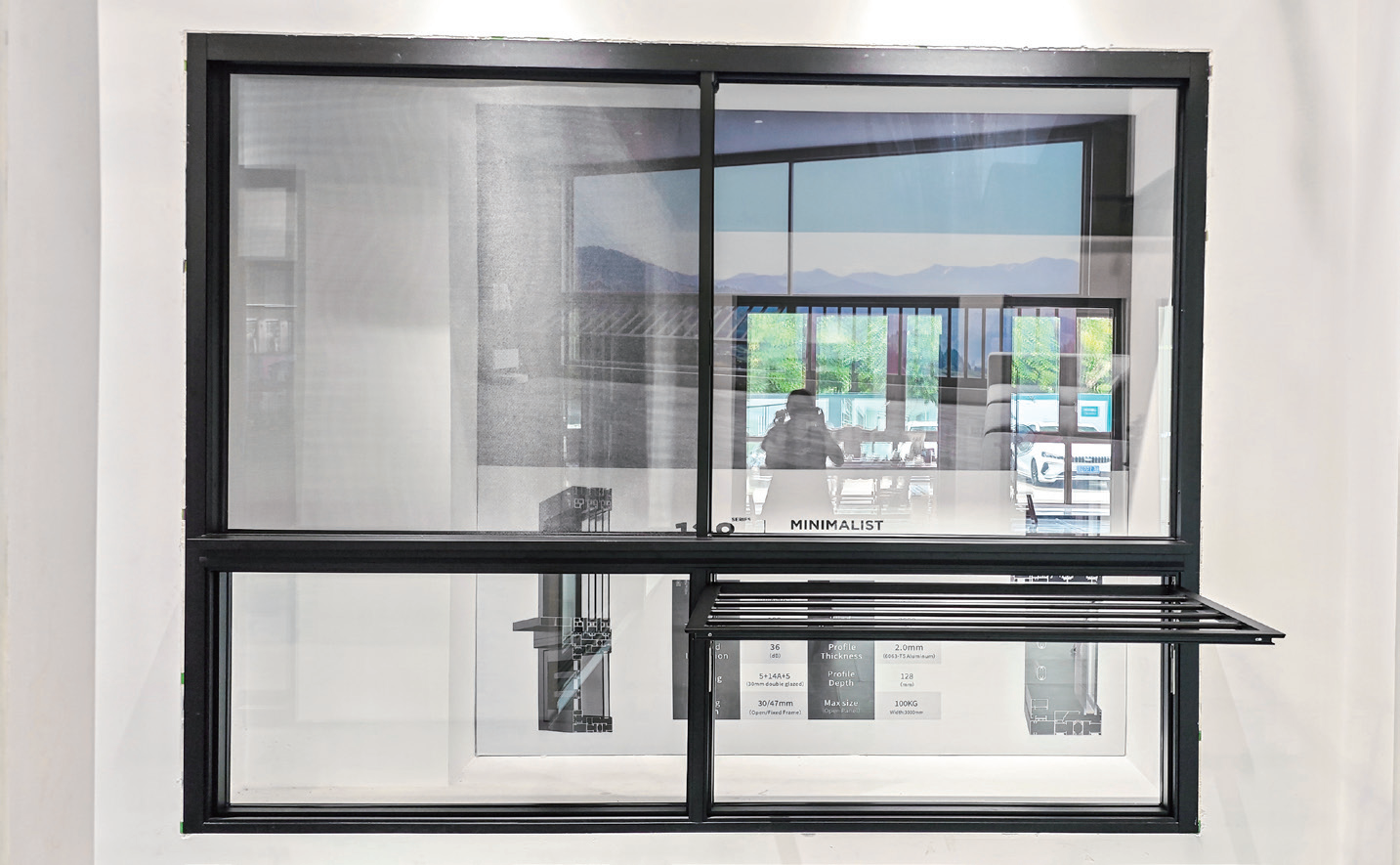

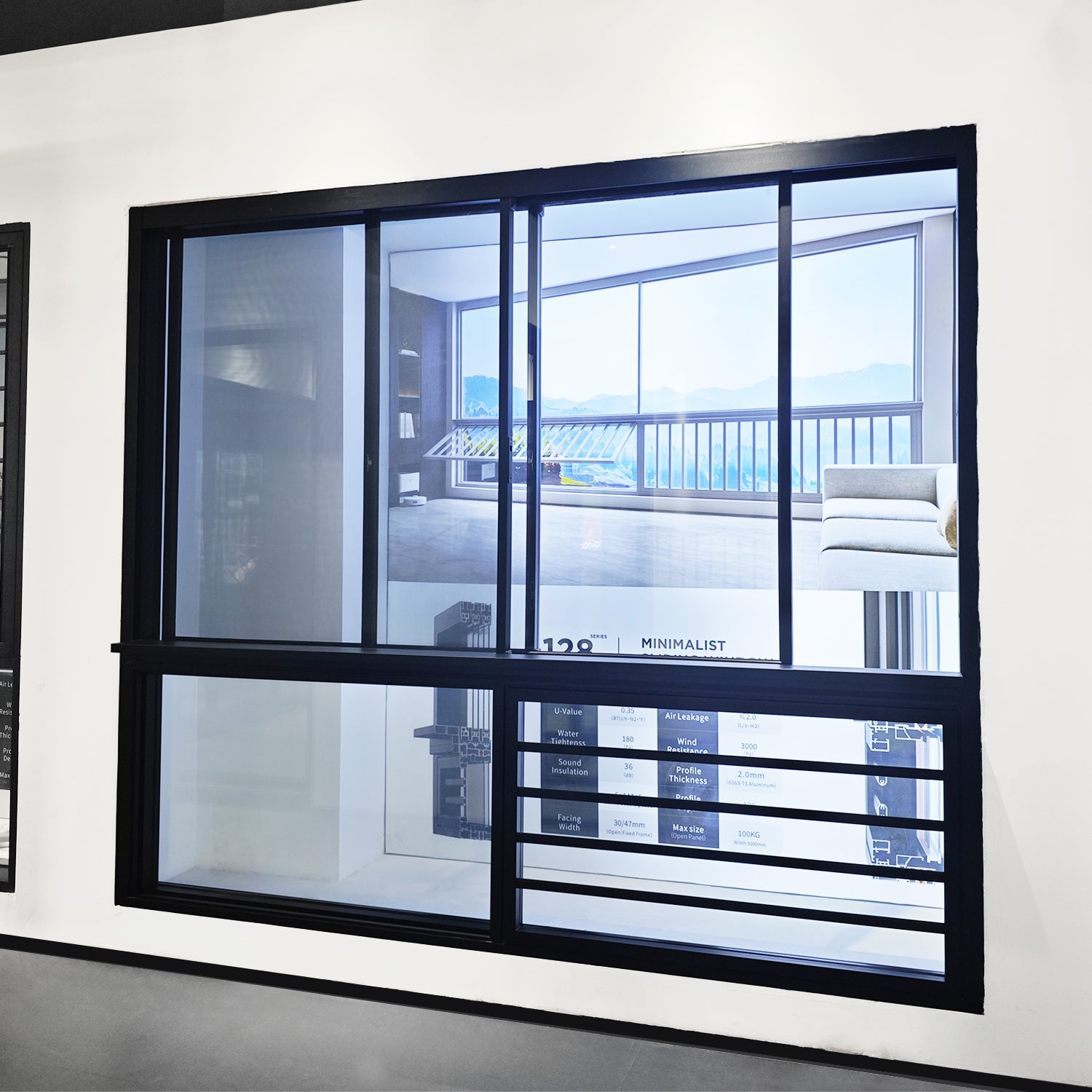

NWA128

REQUEST A QUOTE
Product Parameters
Specifications
U-Value

1.47 W/ m2·K

0.260 BTU/h·ft2·℉

Air Leakage

Class AW According to AAMA/WDMA/CSA 101

Water Tightness

Class AW According to AAMA/WDMA/CSA 101

Wind Resistance

Class AW According to AAMA/WDMA/CSA 101

Sound Insulation

40dB

Aluminum Profile & Thickness

6063-T5 Aluminum

0.07" (1.8mm)

Standard Glass Configuration

3/16"+ 13/16"Ar+3/16" (5mm+20Ar+5mm) Clear Glass

System Basic Depth

Frame: 4 15/16" (126mm)

Sliding Panel: 1 1/4" (32mm)

Profile Face Width

Frame: 1 7/8" (47mm)

Middle Mullion: 1 3/16" (30mm)

Suggested Size (Sliding Panel)

Height: 19 11/16" ~ 60" (500 ~ 1524mm)

Width: 19 11/16" ~ 72" (500 ~ 1830mm)

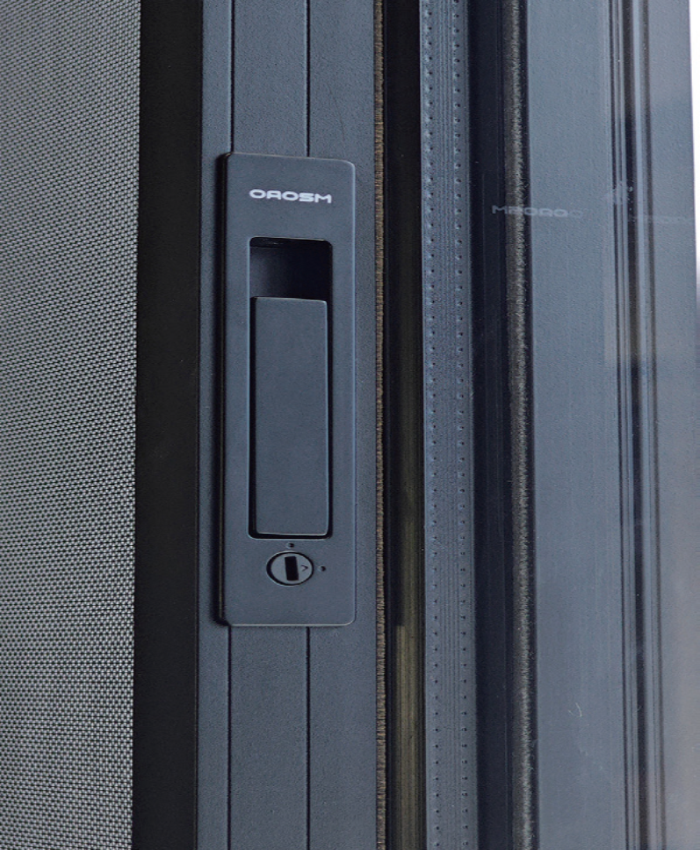

Security

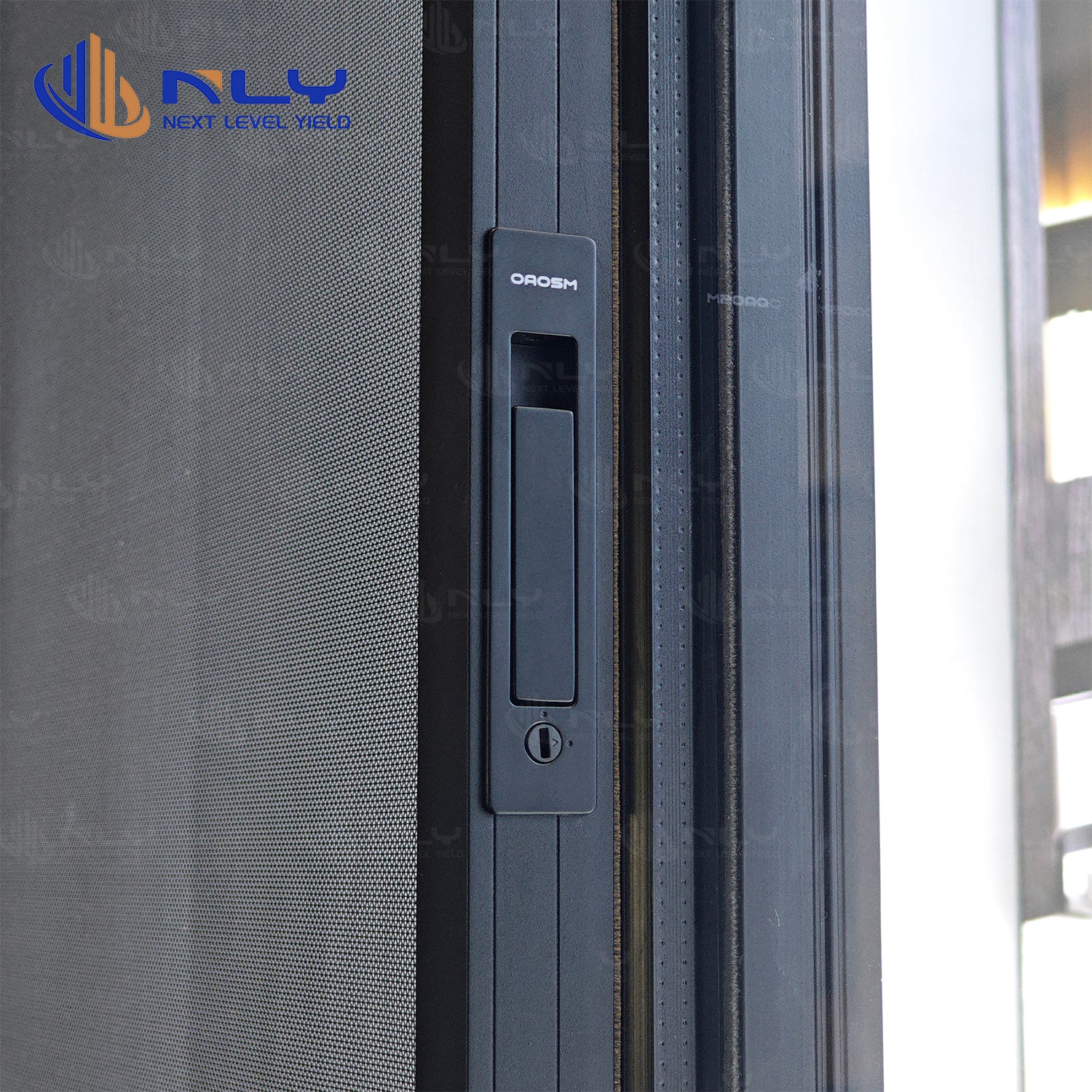

Multi-point lock

Colors

PVDF Black / White / Gray or Custom Colors

View full details
Why You'll Love It
ARGON &LOW-E GLASS
Argon Gas Argon gas is a naturally occurring, non-harmful gas. When Argon gas is inserted between the panes of glass it increases the insulating performance of your double glazing. Argon gas is denser than air, so adding it to the air between the two panes improves thermal insulation efficiency. When a glazing unit features Low E glass and Argon Gas it brings the temperature of the window closer to room temperature. This combination eliminates air currents and drafts that occur when differing temperatures meet
Low Emissivity (Low-E) Glass
A Low E glass coating reduces the amount of heat transfer through a pane of glass. Low E coatings can reflect radiant heat - either from outside or inside, therefore reducing the heating and cooling costs of your home.
Bringing Light and Life Into Every Space
