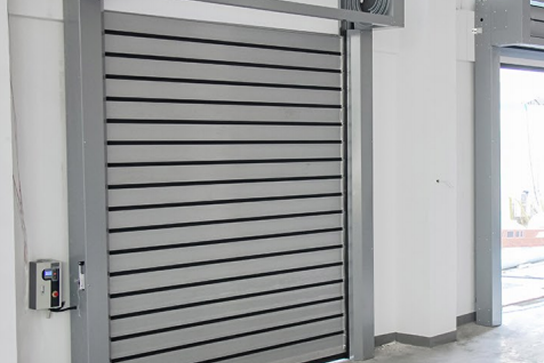

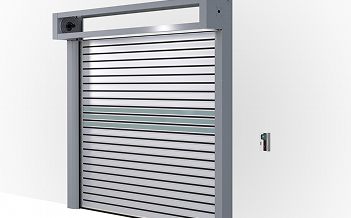

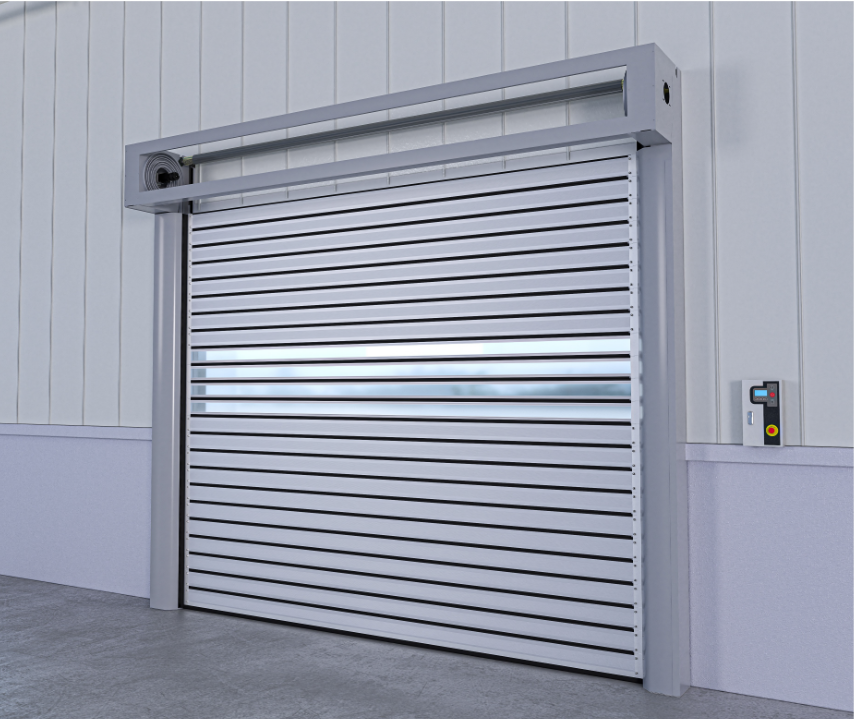

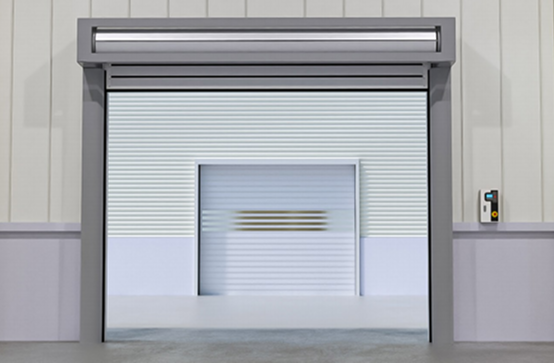

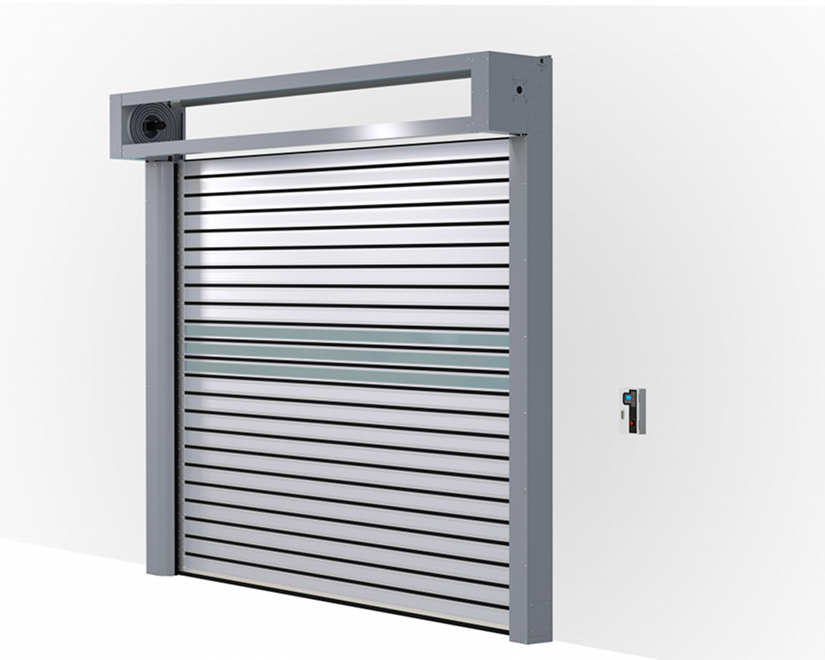

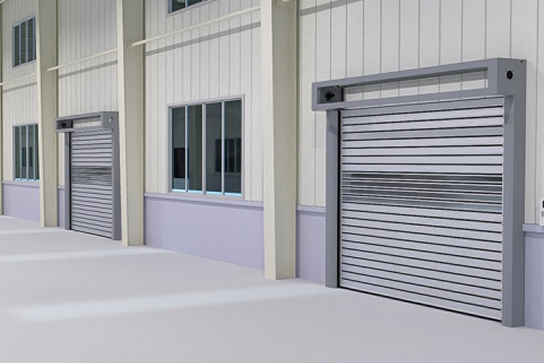

NIX-Rolling Fast Door

Aluminum fast door --a new type of metal industrialdoor that integrates thermal insulation, energysaving, sealing, high efficiency, wind resistance andenvironmental protection, with an opening speedof up to 2.5 meters per second, suitable for indoorand outdoor logistics channels that require frequenthigh-speed passage. The door panel is made of o.7mmthick double-layer aluminum plate once compositemolding through the assembly line, and the middle isfilled with polyurethane foam. The section design isa broken bridge heat insulation structure, which hasthe characteristics of good heat preservation, lightweight, high strength and impact resistance. Thewind resistance grade can reach 12. The door typecan reduce a large amount of energy loss caused byair circulation. The drive control adopts a stable andenergy-saving co-service system to ensure the reliableoperation of the door body.
REQUEST A QUOTE
Product Parameters
Specifications
Applicable door size (mm)

Max width 9000

Max height 8000

Working voltage/frequency

110-480V

50Hz

Motor power

0.75kW / 1.5kW / 2.2kW

Panel thickness

43mm

Heat-transfer coefficient

K=1.5W/m²·K

Sound insulation performance

Rw(C;Ca)=28(-1;-3)dB

Adaptive temperature

-40°C ~ 50°C

Wind load resistance

700Pa

Speed

0.6-2.5m/s

View full details
Why You'll Love It
thermal insulation
Energy conservation
Sound insulation
Security and protection
Bringing Light and Life Into Every Space
