DOOR & WINDOWS
5.0

NDA75

REQUEST A QUOTE
Product Parameters
Specifications
U-Value

1.86 W/ m2·K

0.321 BTU/h·ft2·℉

Air Leakage

Class CW According to AAMA/WDMA/CSA 101

Water Tightness

Class CW According to AAMA/WDMA/CSA 101

Wind Resistance

Class CW According to AAMA/WDMA/CSA 101

Sound Insulation

36dB

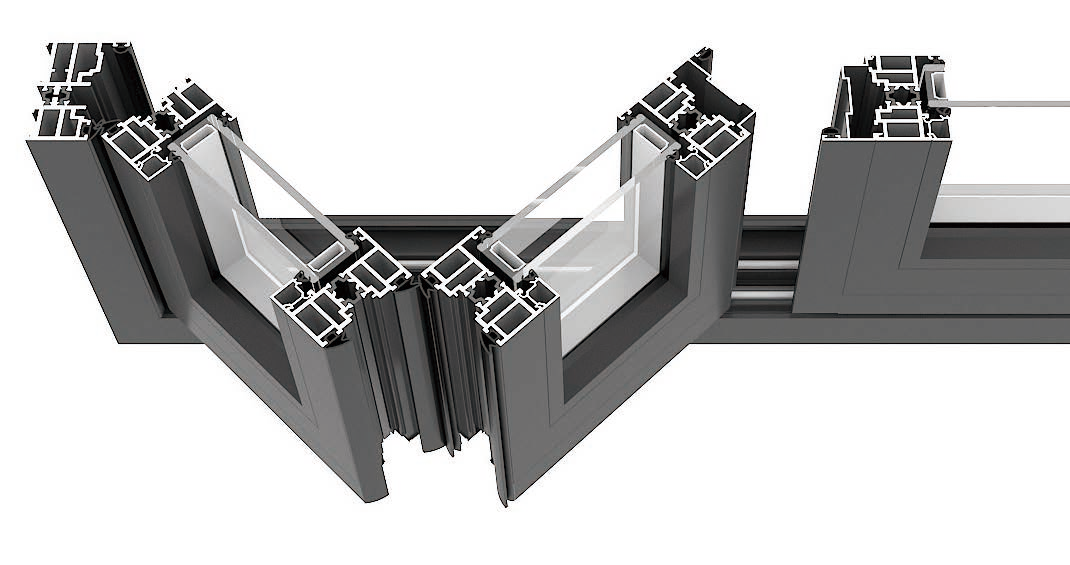

Aluminum Profile & Thickness

6063-T5 Aluminum

0.08" (2.0mm)

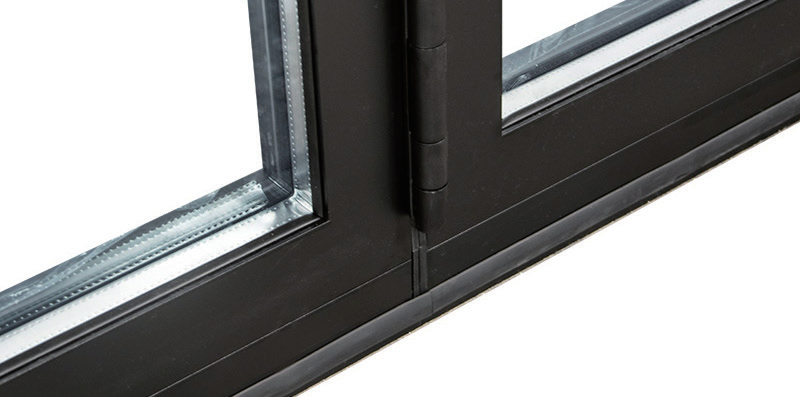

Standard Glass Configuration

3/16"+ 13/16"Ar+3/16" (5mm+20Ar+5mm) Clear Glass

System Basic Depth

Frame: 2 15/16" (75mm)

Swing Panel: 2 9/16" (72mm)

Profile Face Width

Threshold: 1 3/8" (35mm)

Mullion: 1 3/4" (45mm)

Suggested Size (Swing Panel)

Height: 80" ~ 120" (2032 ~ 3048mm)

Width: 19 11/16" ~ 33 7/16" (500 ~ 850mm)

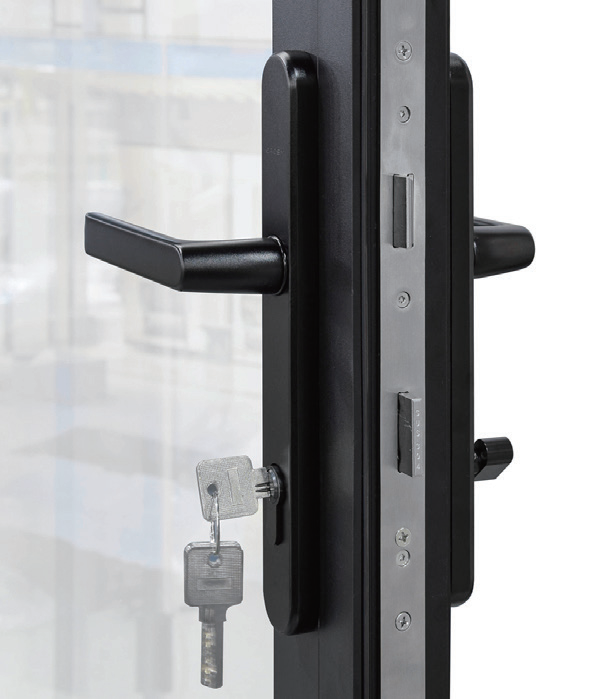

Security

Multi-point lock

Colors

PVDF Black / White / Gray or Custom Colors

View full details
Why You'll Love It

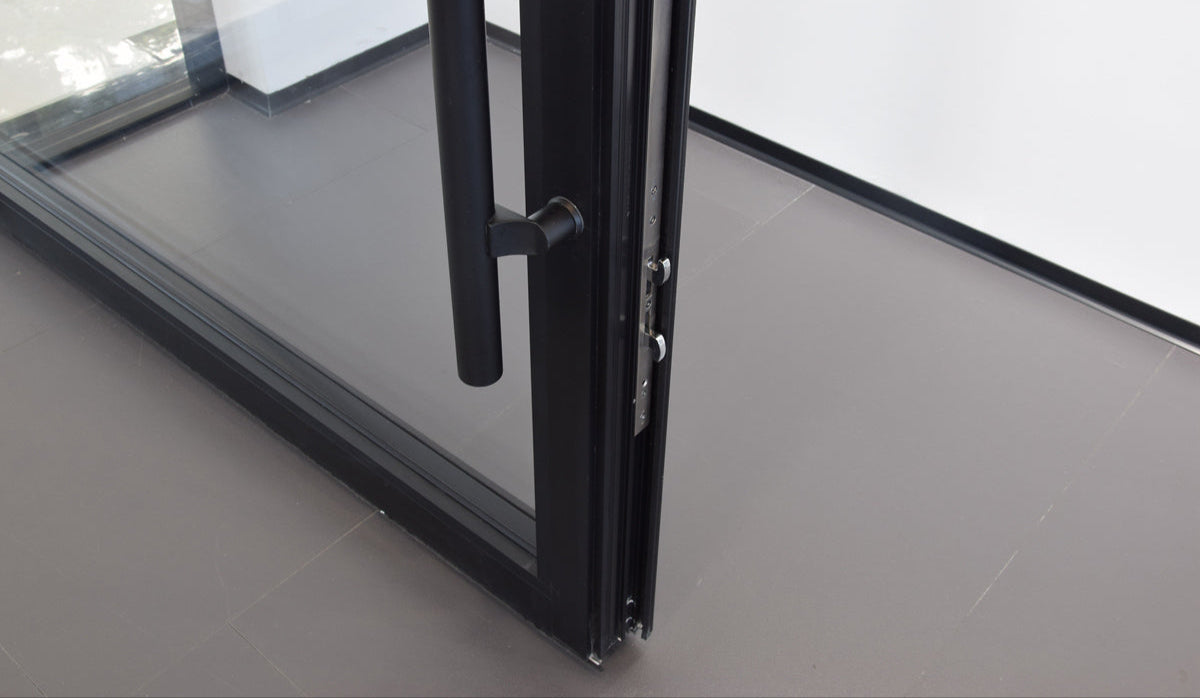

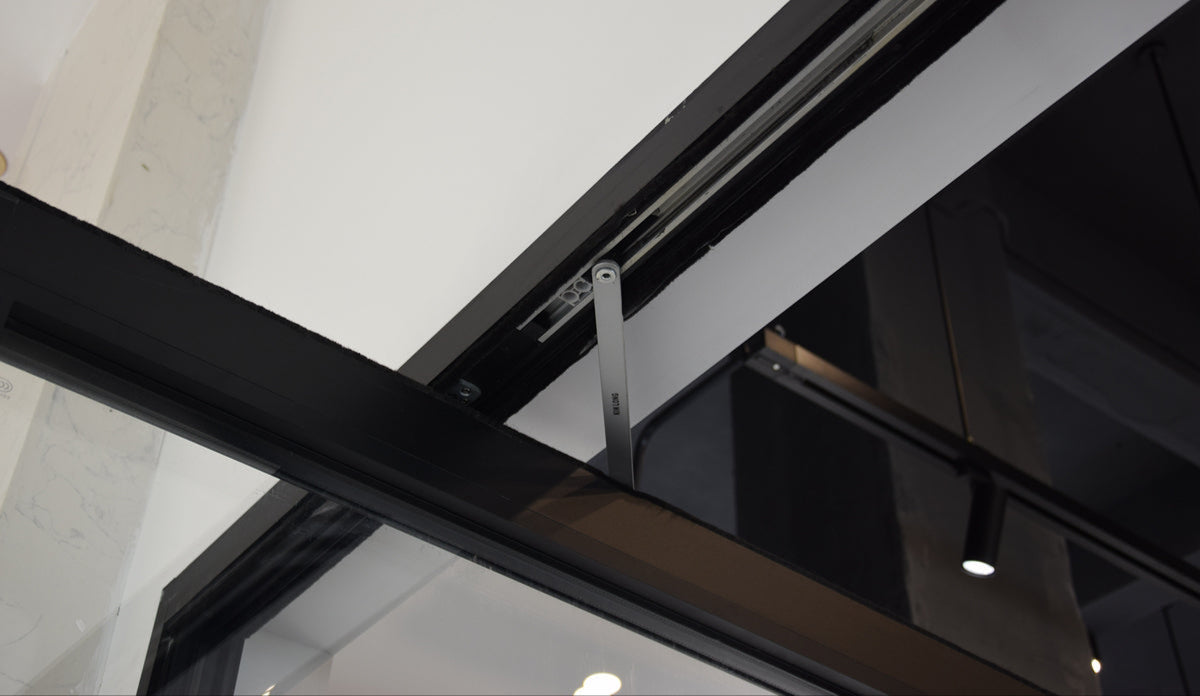

AUTOMATIC LOCK LATCH
The auto locking latch ensures smooth track alignment and instant securement, simplifying door operation.
EXCELLENT CAPABILITIES

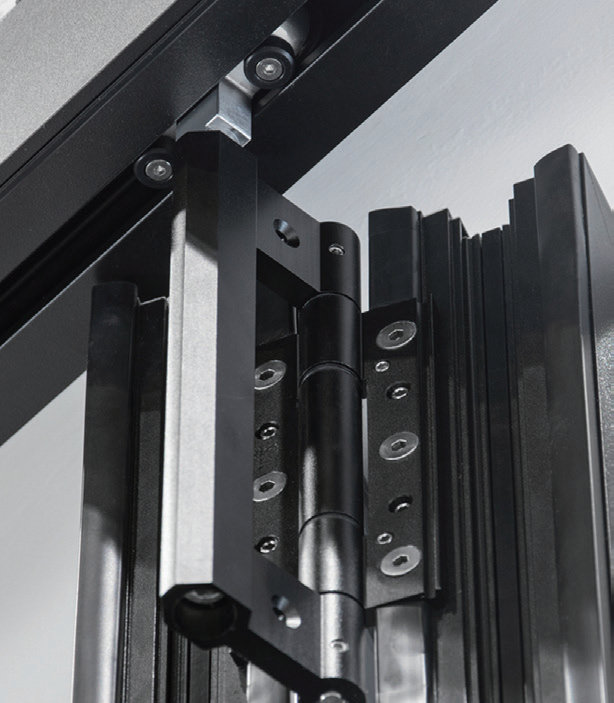

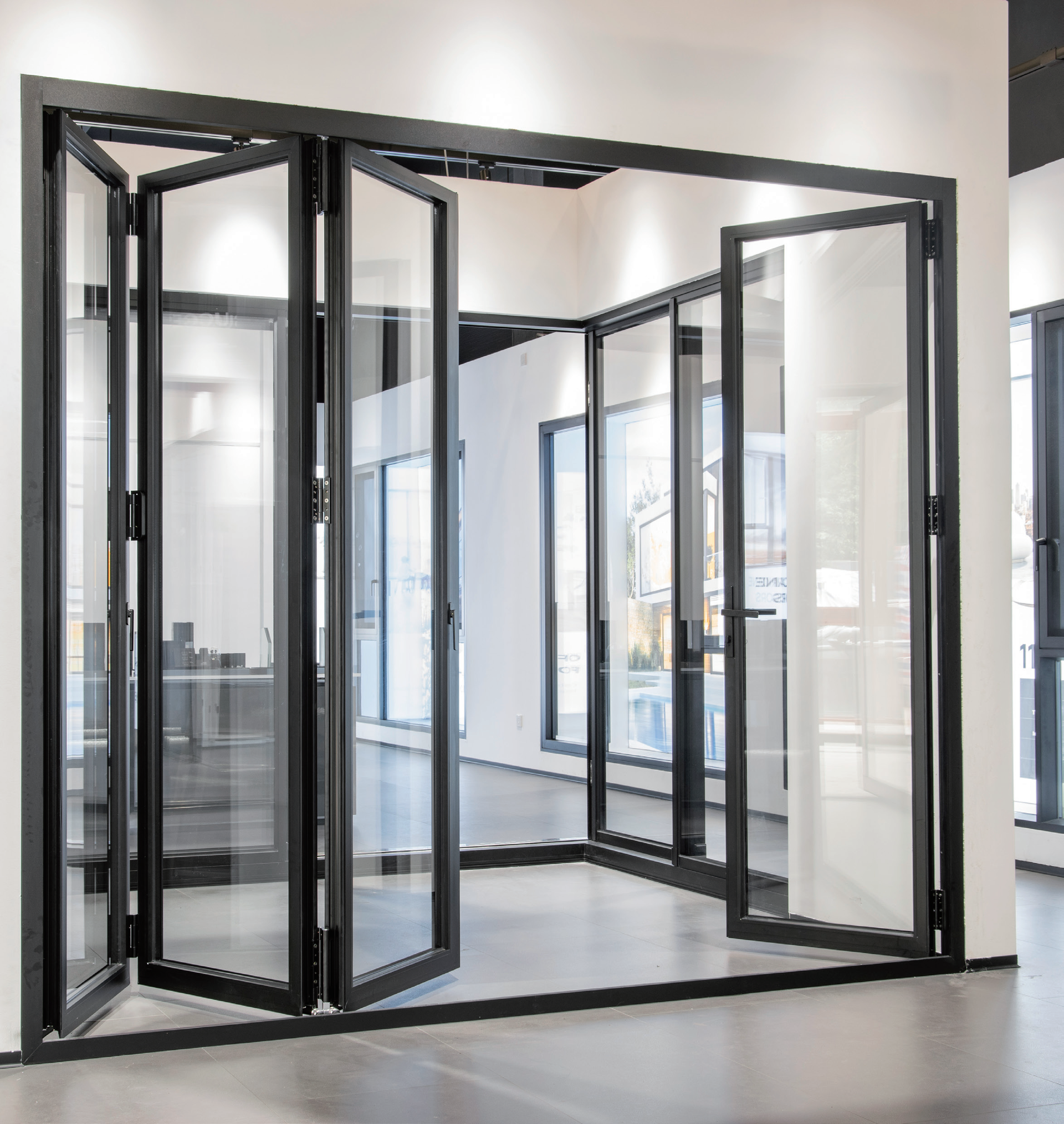

This high performance system offers enhanced features, as well as a minimal design, high insulation and functionality with hardware that have specifically been designed for folding systems. Able to open inward or outward door with locking system. Possibility of even number of openings(2, 4 etc.) In and outward opening using the same profiles
