DOOR & WINDOWS
5.0

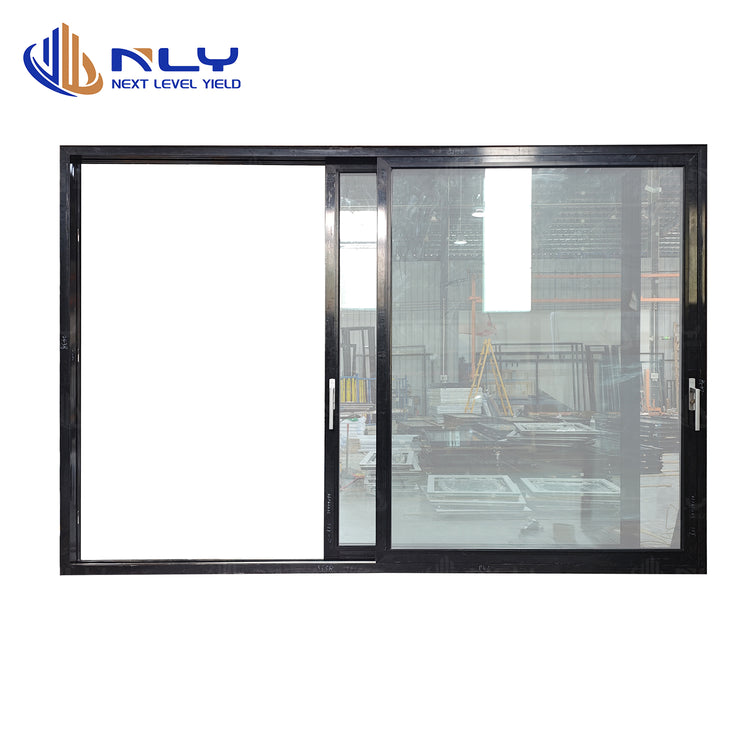

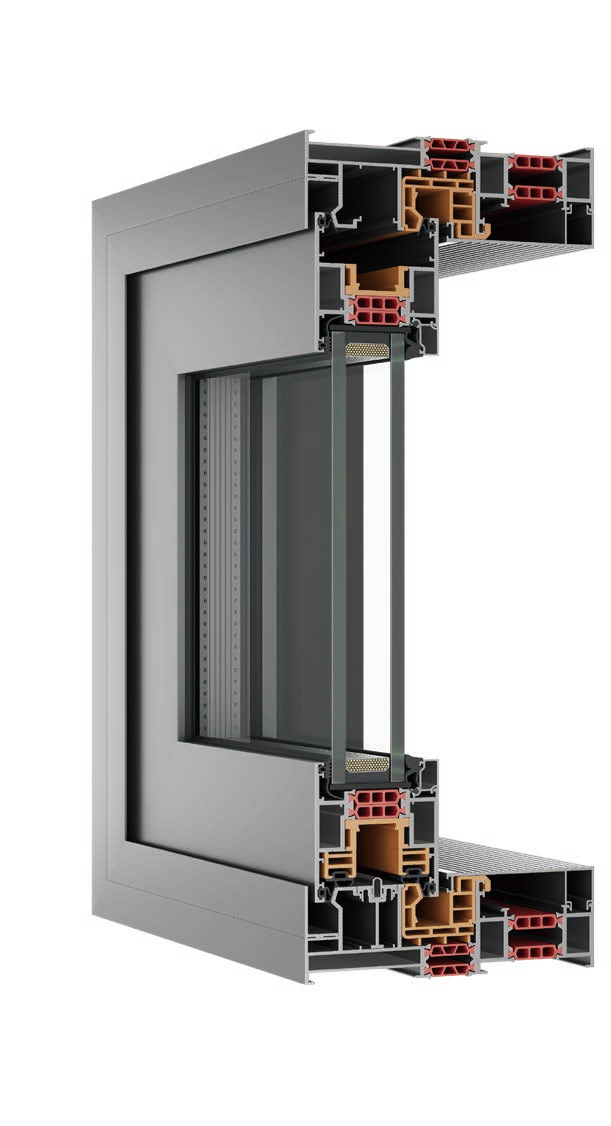

NDA160

REQUEST A QUOTE
Product Parameters
Specifications
U-Value

1.74 W/ m2·K

0.306 BTU/h·ft2·℉

Air Leakage

Class CW According to AAMA/WDMA/CSA 101

Water Tightness

Class CW According to AAMA/WDMA/CSA 101

Wind Resistance

Class CW According to AAMA/WDMA/CSA 101

Sound Insulation

36dB

Aluminum Profile & Thickness

6063-T5 Aluminum

1/8" (2.5mm)

Standard Glass Configuration

3/16"+ 1 1/16"Ar+3/16" (5mm+27Ar+5mm) Clear Glass

System Basic Depth

Frame: 6 1/8" (155mm)

Sliding Panel: 2 9/16" (65mm)

Profile Face Width

Threshold: 2 1/4" (58mm)

Middle Mullion: 3 1/16" (78mm)

Suggested Size (Sliding Panel)

Height: 80" ~ 96" (2032 ~ 2438mm)

Width: 30" ~ 72" (762 ~ 1830mm)

Security

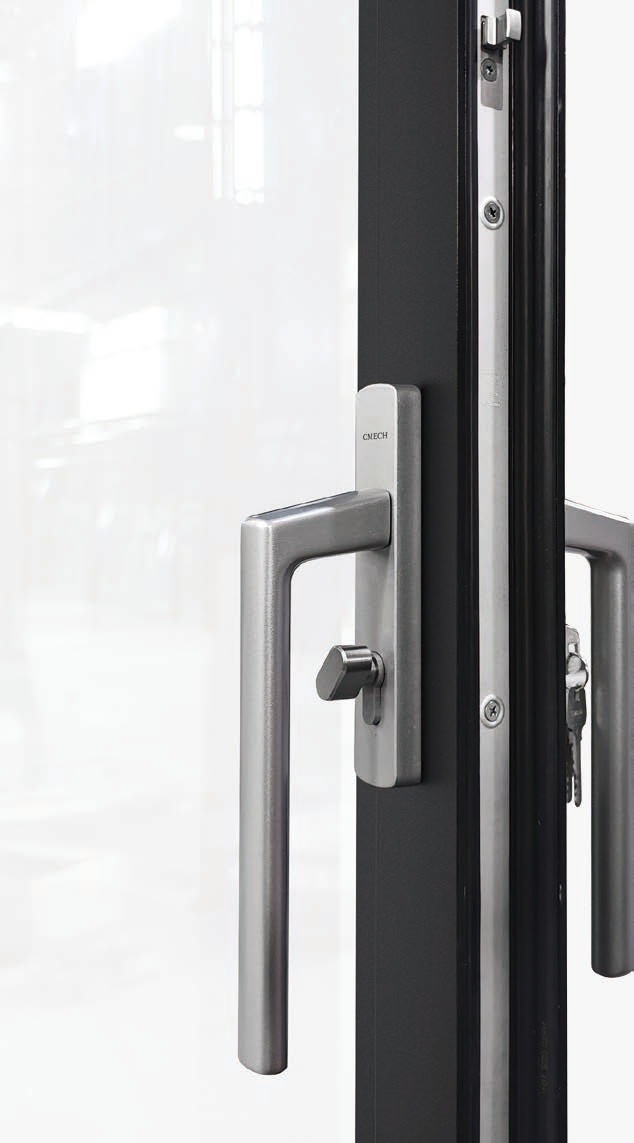

Multi-point lock

Colors

PVDF Black / White / Gray or Custom Colors

View full details
Why You'll Love It

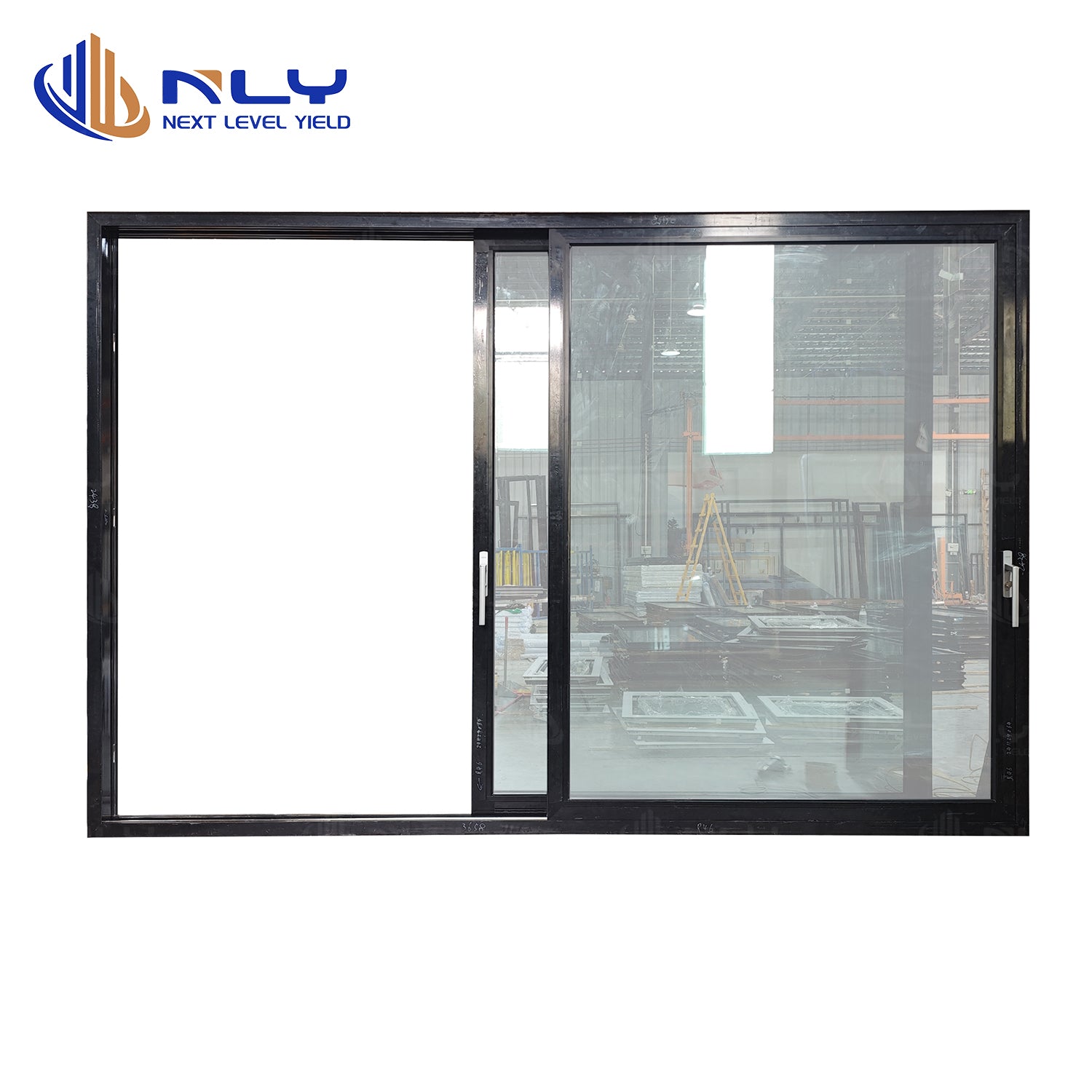

AAMA CW CLASS LIFT & SLIDING DOORS
This makes it more suitable for outdoor use, as it can withstand harsh weather conditions and provide a smooth and effortless sliding experience. Our patio sliding door also features a sleek and modern design that can enhance the beauty and value of your home. Whether you want to enjoy the natural light, fresh air, or scenic views, our patio sliding door can offer you the best of both worlds. Contact us today to find out more about our product and how we can help you create your dream outdoor space.

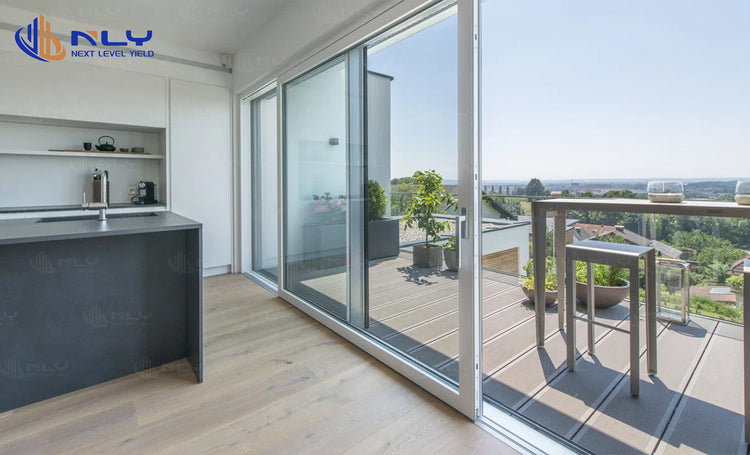

Bringing Light and Life Into Every Space
