COMFORT WINDOWS / PRODUCT DETAILS
DOOR & WINDOWS
5.0

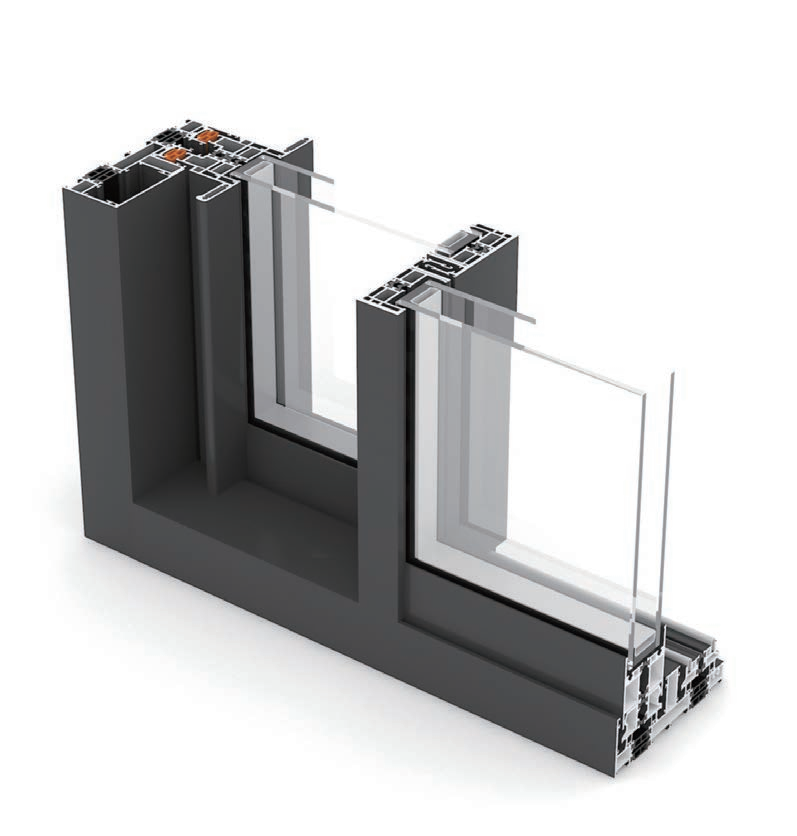

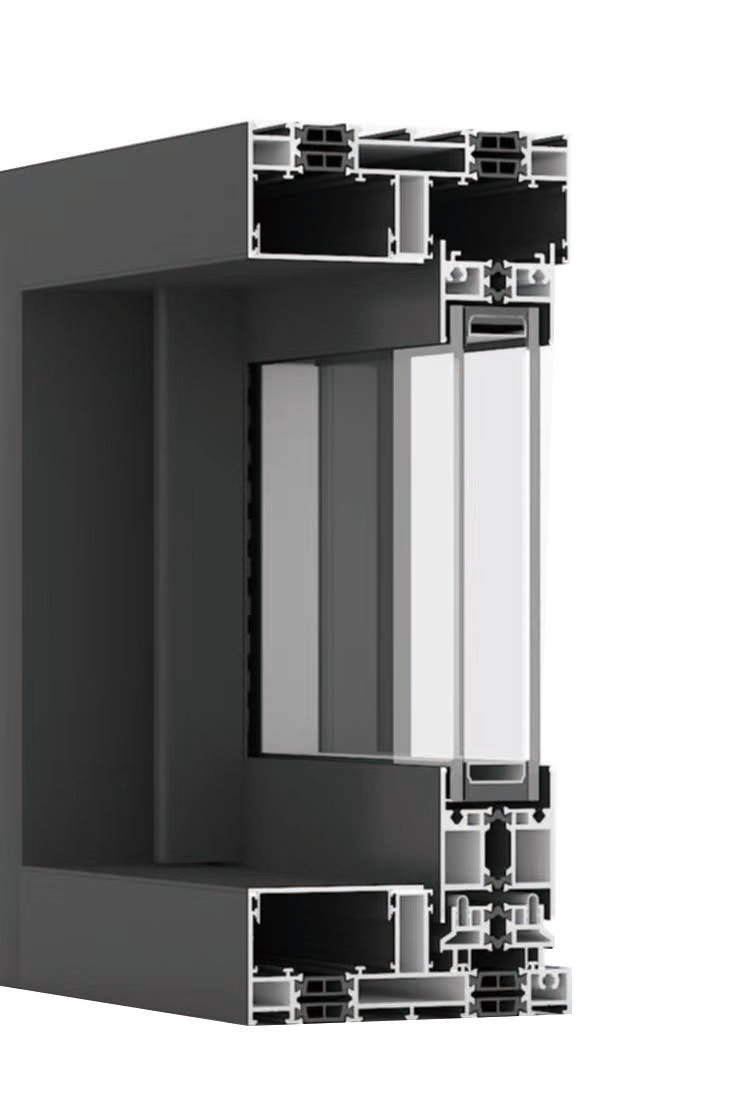

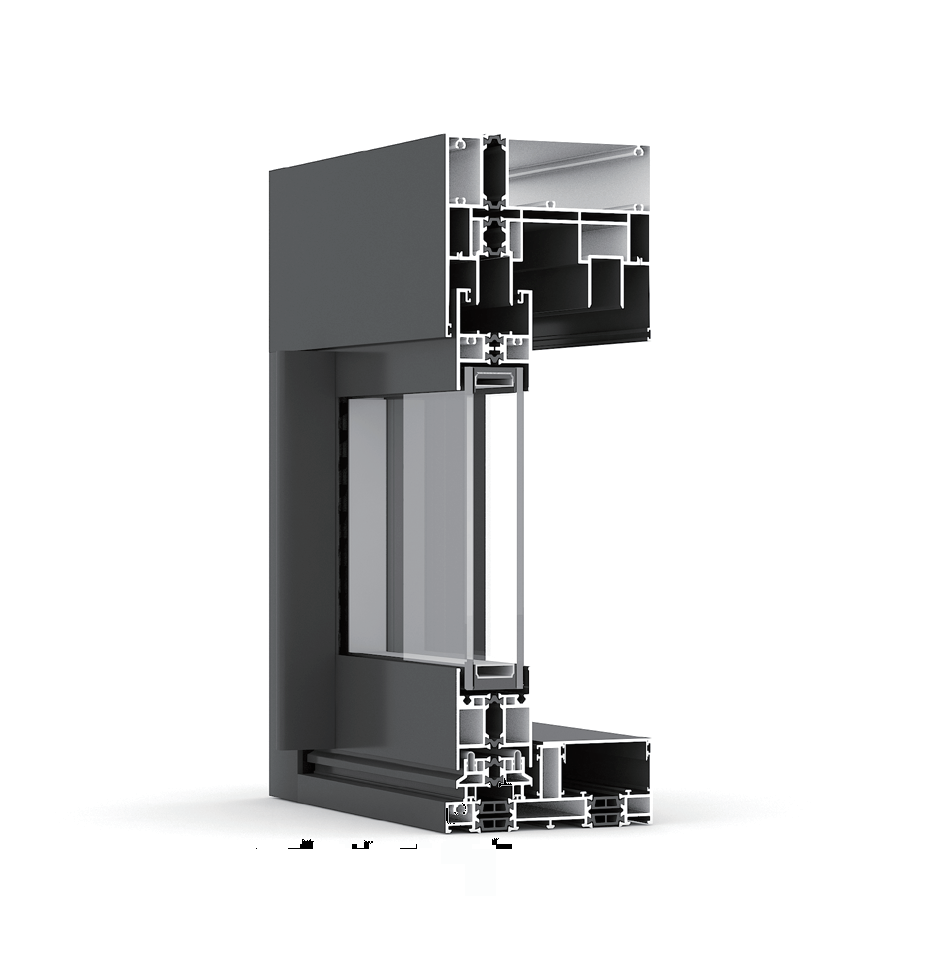

NDA138

Depth of Profile
138mm
Frame Width
23mm
Depth of Profile
45mm
REQUEST A QUOTE
Product Parameters
Specifications
Value

1.79 W/ m2·K

0.316 BTU/h·ft2·℉

Air Leakage

Class LC According to AAMA/WDMA/CSA 101

Water Tightness

Class LC According to AAMA/WDMA/CSA 101

Wind Resistance

Class LC According to AAMA/WDMA/CSA 101

Sound Insulation

36dB

Aluminum Profile & Thickness

6063-T5 Aluminum

0.08" (2.0mm)

Standard Glass Configuration

1/4"+ 1 1/16"Ar+1/4" (6mm+27Ar+6mm) Clear Glass

System Basic Depth

Frame: 5 7/16" (138mm)

Sliding Glass Panel: 2" (50mm)

Profile Face Width

Threshold: 2" (50mm)

Middle Mullion: 1 3/8" (35mm)

Suggested Size (Sliding Panel)

Height: 80" ~ 144" (2032 ~ 3658mm)

Width: 30" ~ 80" (762 ~ 2032mm)

Security

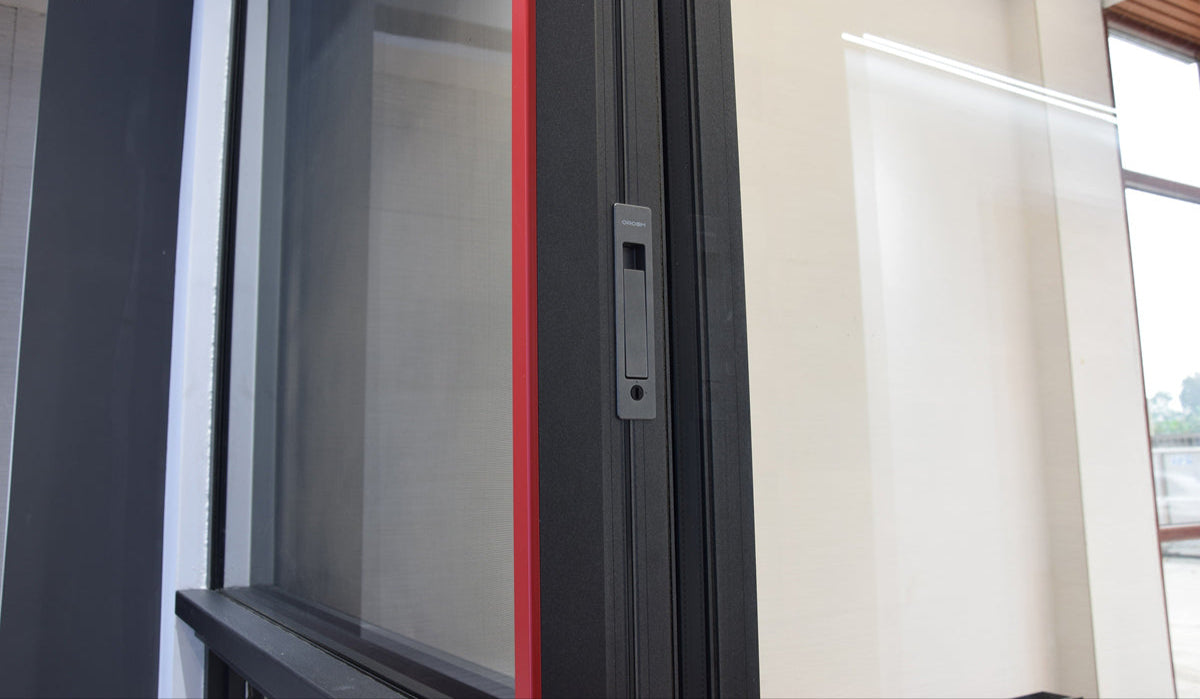

Multi-point lock

Colors

PVDF Black / White / Gray or Custom Colors

View full details
Why You'll Love It

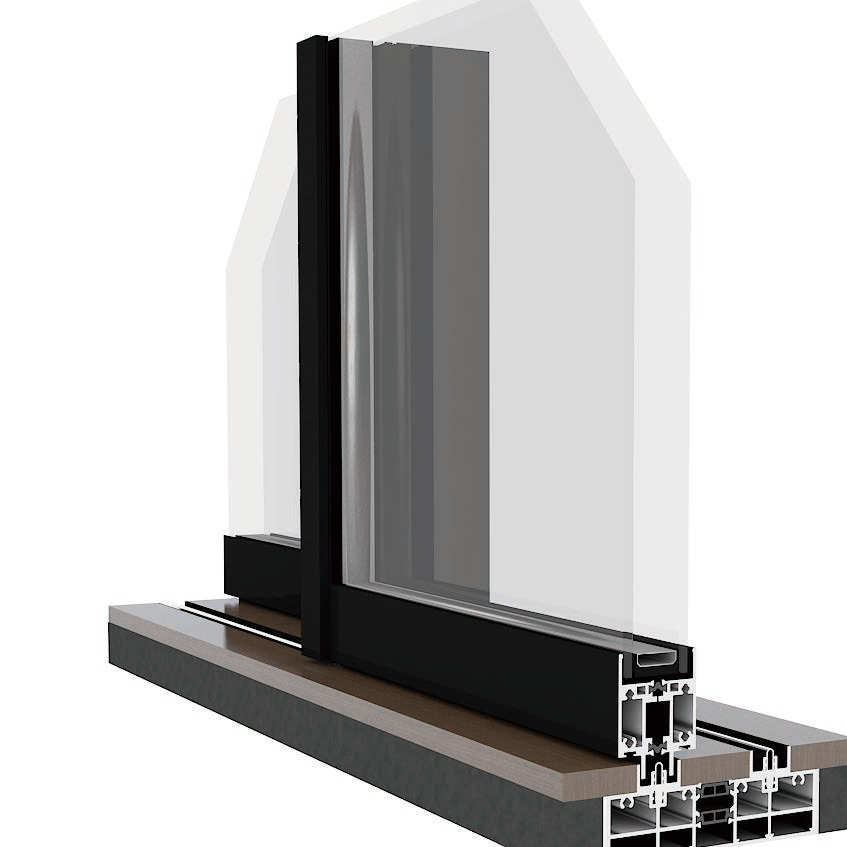

MINIMALIST SLIM MULLION PROFILE Specially Designed To Reach 1" (25mm)

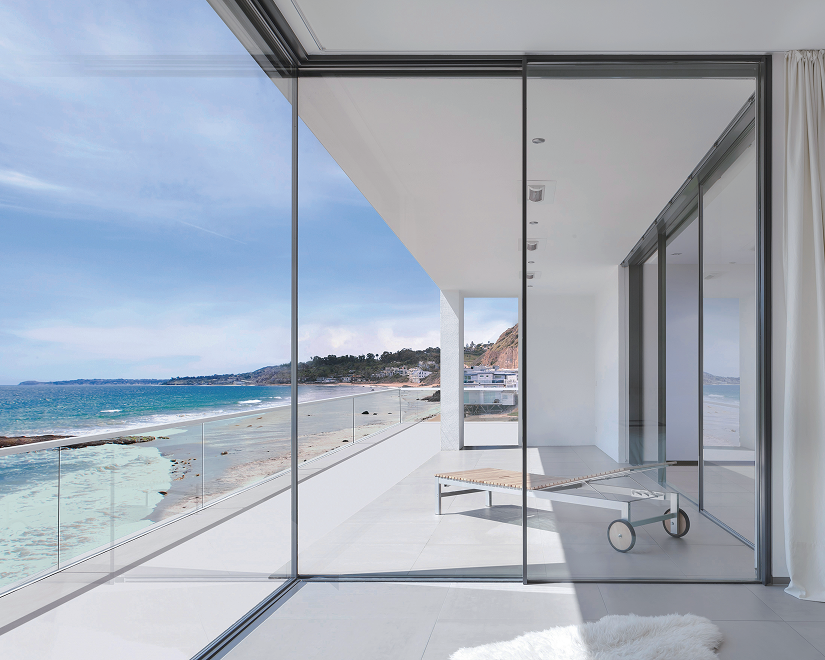

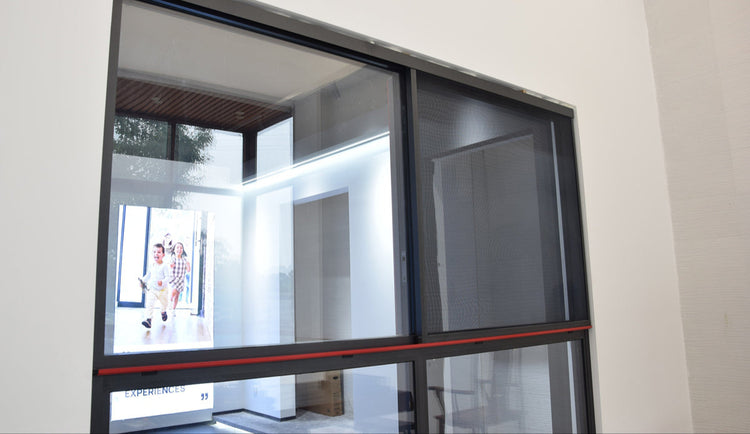

Our double-glazed minimal sliding door system is a virtually frameless, easy-to-operate aluminum sliding system, with 1 3/8" sightline leaf profile. The oversized sliding sections, up to 196 7/8" (5M) in height, are set in virtually invisible frame profiles, allowing you to enjoy unobstructed views. Elevate your spirit with breath-taking sea views, twinkling city nights capes, or natural landscapes and gardens.
Bringing Light and Life Into Every Space
