COMFORT DOORS / PRODUCT DETAILS
Skip to product information
DOOR & WINDOWS
5.0

NDA108

Depth of Profile
138mm
Frame Width
23mm
Depth of Profile
45mm
REQUEST A QUOTE
Product Parameters
Specifications
Value

1.86 W/ m2·K

0.321 BTU/h·ft2·℉

Air Leakage

Class CW According to AAMA/WDMA/CSA 101

Water Tightness

Class CW According to AAMA/WDMA/CSA 101

Wind Resistance

Class CW According to AAMA/WDMA/CSA 101

Sound Insulation

36dB

Aluminum Profile & Thickness

6063-T5 Aluminum

0.08" (2.0mm)

Standard Glass Configuration

3/16"+ 13/16"Ar+3/16" (5mm+20Ar+5mm) Clear Glass

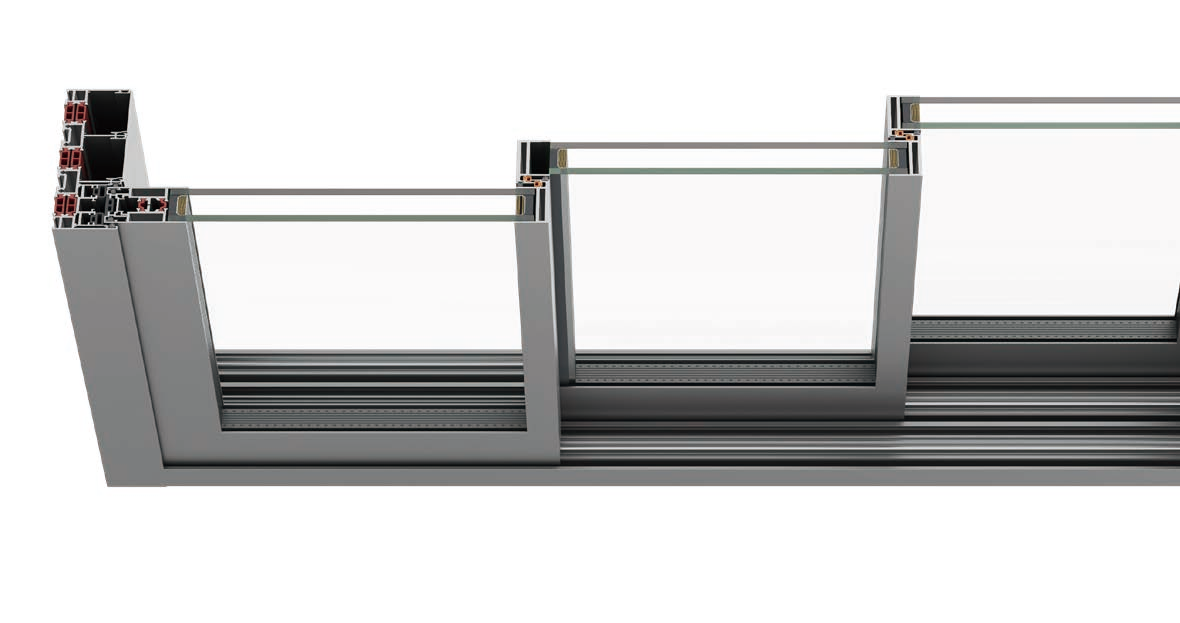

System Basic Depth

Frame: 6 5/16" (161mm Triple Tracks)

Sliding Panel: 1 5/8" (41mm)

Profile Face Width

Threshold: 1 3/16" (30mm)

Middle Mullion: 1" (25mm)

Suggested Size (Sliding Panel)

Height: 72" ~ 96" (1830 ~ 2438mm)

Width: 30" ~ 72" (762 ~ 1830mm)

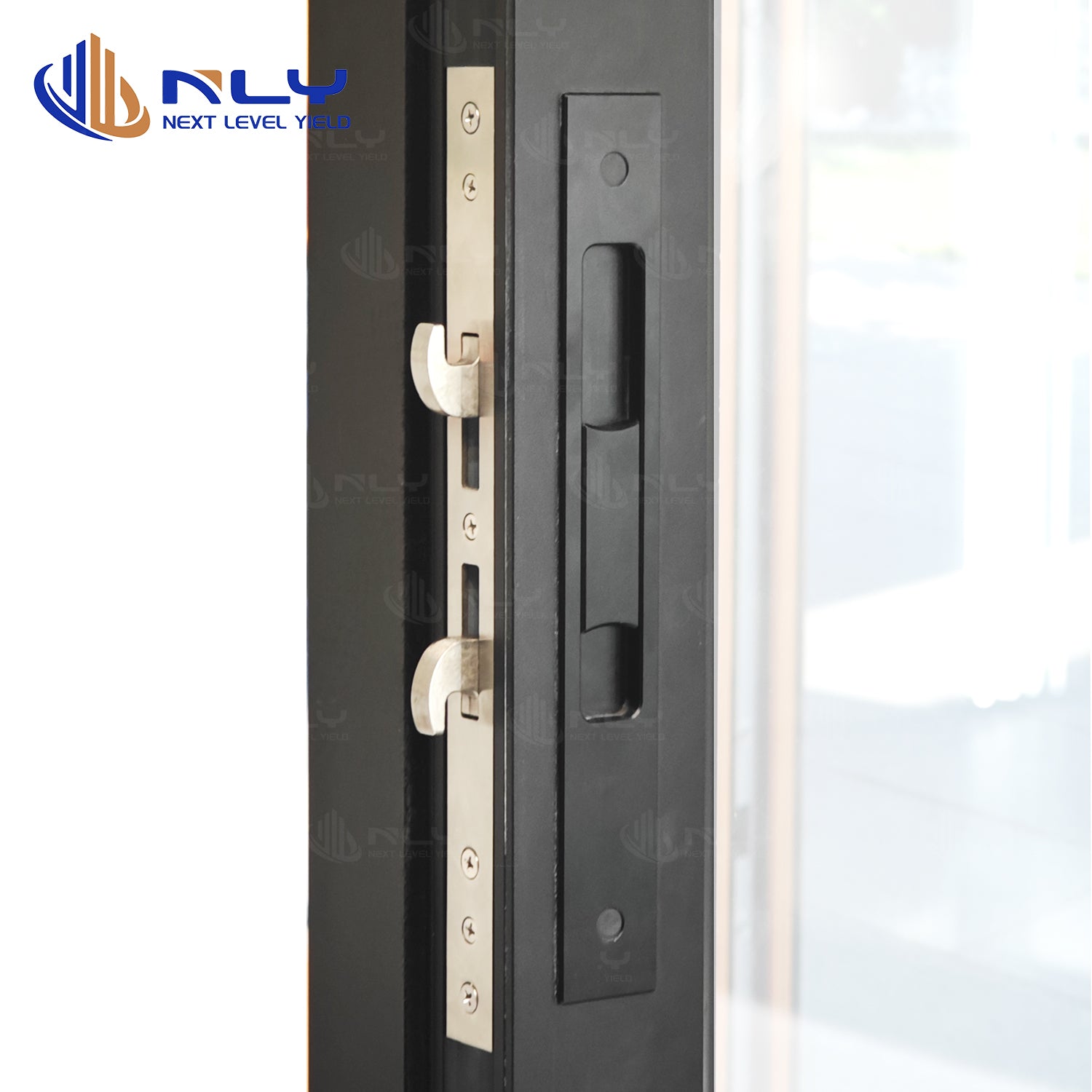

Security

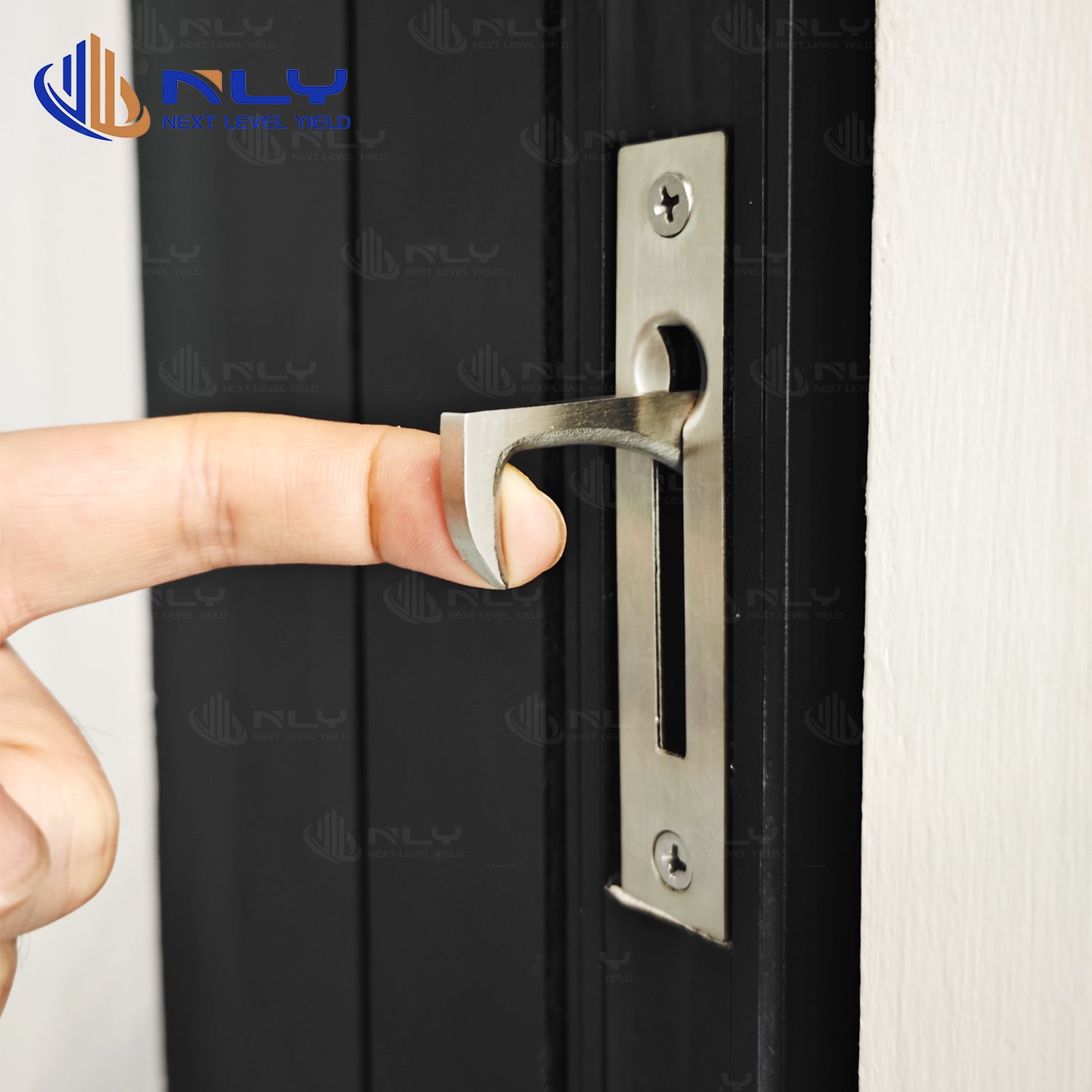

Hook lock

Colors

PVDF Black / White / Gray or Custom Colors

View full details
Why You'll Love It
Smart , Flexible Controls
Open and close with home automation systems, voice assistants, Marvin Home App, wall switches, programmable motion sensors, or 9-in-1 touch screen.
Category-Leading Performance
Our high-density fiberglass material and proprietary frame design provide excellent thermal performance.
Expansive Sizes
Our one-of-a-kind frame connects you to the outdoors and delivers strength, durability, and energy efficiency
Grand Views
Clean lines open your home to views of the outdoors, bringing more natural light into your favorite spaces
Bringing Light and Life Into Every Space
