Push and pull / PRODUCT DETAILS
DOOR & WINDOWS
5.0

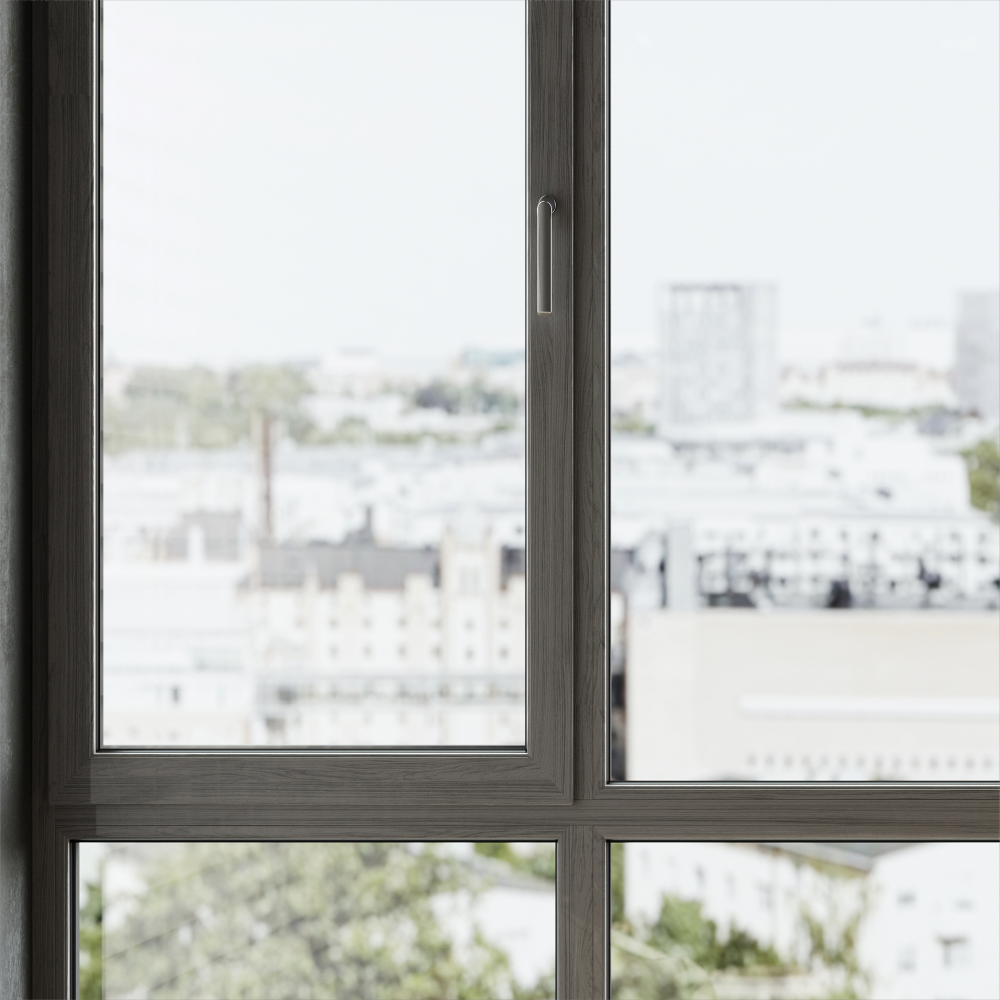

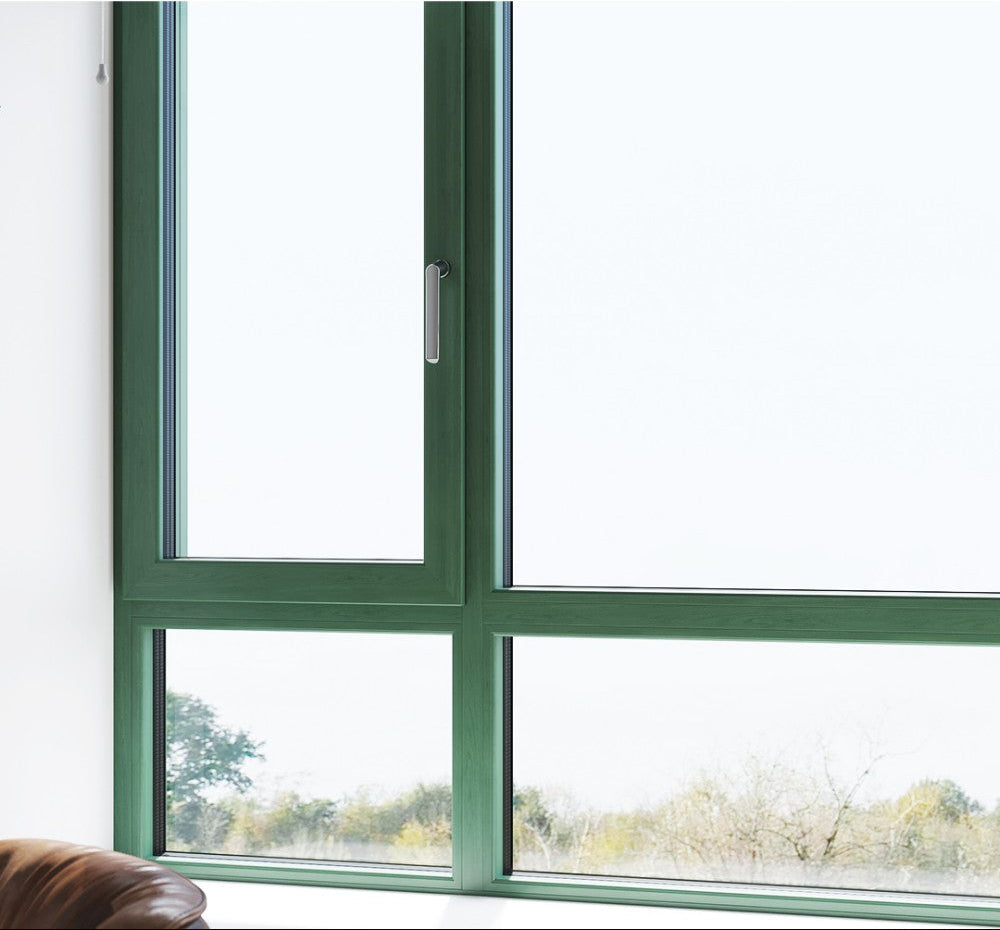

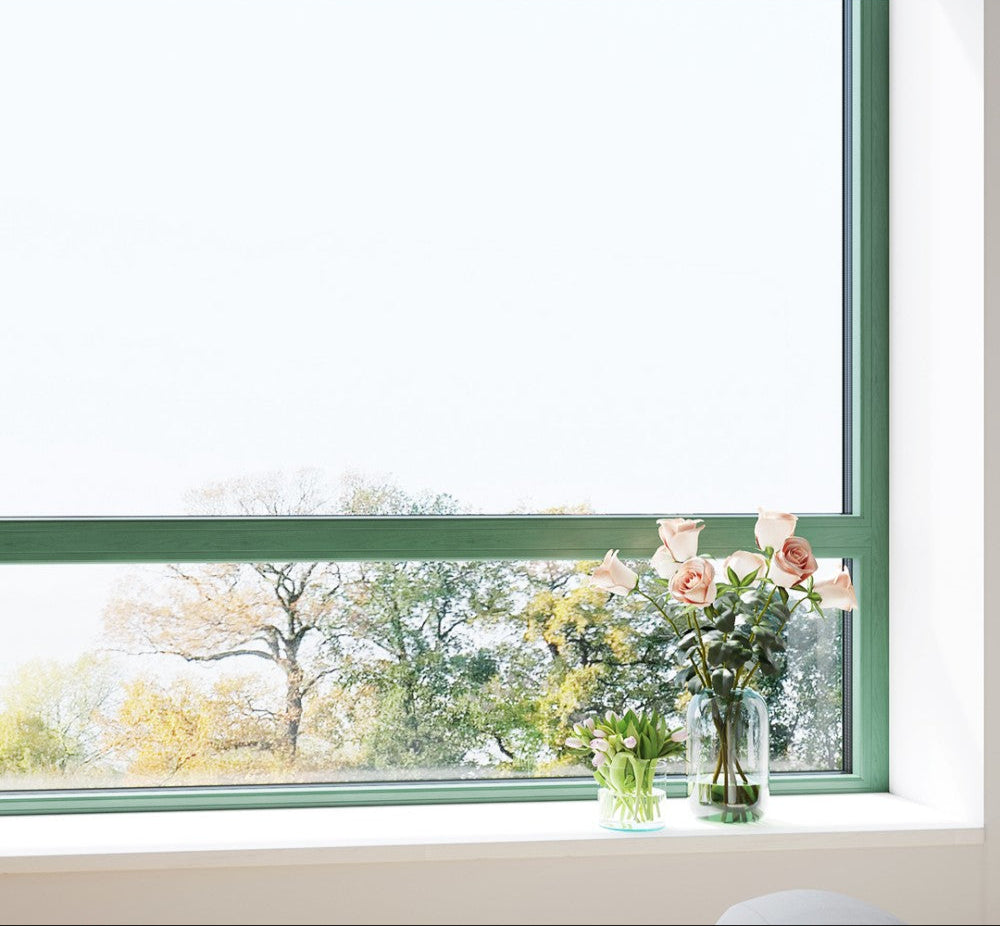

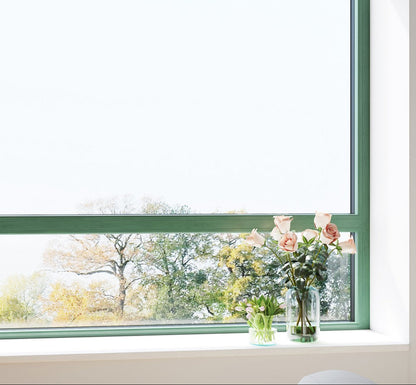

NWL85-M

Wood Clad Aluminum Composite
Profile Thickness:3 3/8"(85mm)
Aluminum Alloy Profile
Thickness:≥1/16" (1.40mm)
Wood Profile
Thickness:11/16"(18mm)
REQUEST A QUOTE
Product Parameters
Specifications
Glass

Fixed: 3/16"(5mm)+13/16"(20Ar)+3/16"(5mm) Glass Rabbet: 1 5/8"(41.5mm)

Sash: 3/16"(5mm)+13/16"(20Ar)+3/16"(5mm) Glass Rabbet: 1 1/2"(38mm)

Hardware

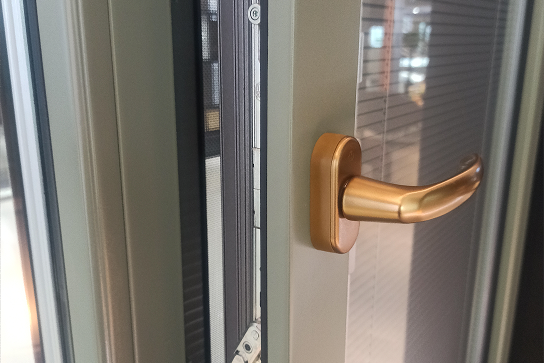

Glass Sash Handle: Germany HOPPE

Transmission: Austria MACO (Surface-mounted Hinges)

Transmission (Optional): Austria MACO (Concealed Hinges)

Optional Configurations: For Cold Regions or High Air-tightness Requirements

Mosquito Net: NLY Customized

Technologies

Aluminum Alloy: Seamless Welding / Cavity Foam Filling / Non-return Drainage System / R7 Round Corner

Wood: Three Times of Primer and Two Times of Finish Waterborne Paint / Whole Spraying

View full details
Why You'll Love It
Screen
48 Mesh High Transmittance Screen /304 Stainless Steel Screen/316 Stainless Steel Screen(Inward-opening)
Globally Sourced Premium Hardwoods
(e.g., Oak, Teak, Padauk) With Customizable Colors
Dovetail + M-nail Corner Joints
Prevent Wood From Cracking At Corners
Profile Cross-section
Snap-fit Connections Accommodate Stress Across Different Materials

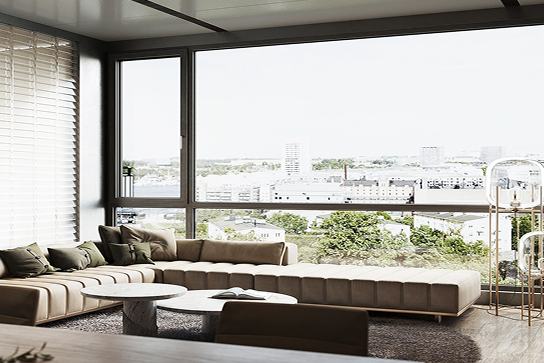

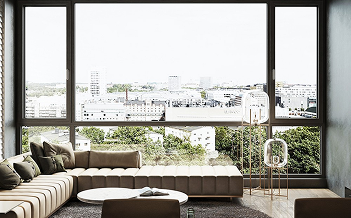

Bringing Light and Life Into Every Space
