DOOR & WINDOWS
5.0

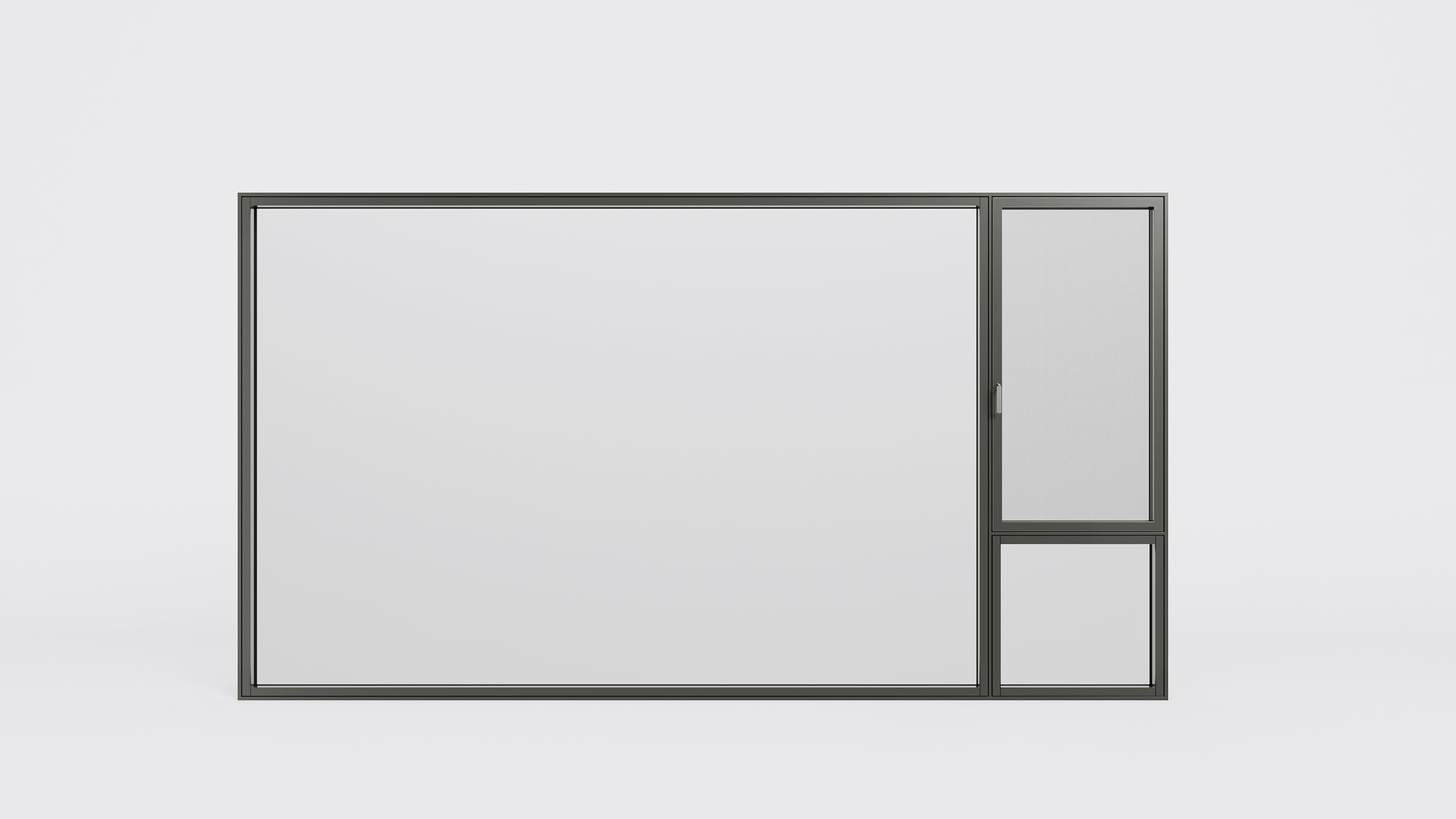

NWL108-N

Sash Width
1 7/8"(48mm)
Frame Width
3/4”(21mm)
Depth of Profile
4 1/4"(108mm)
REQUEST A QUOTE

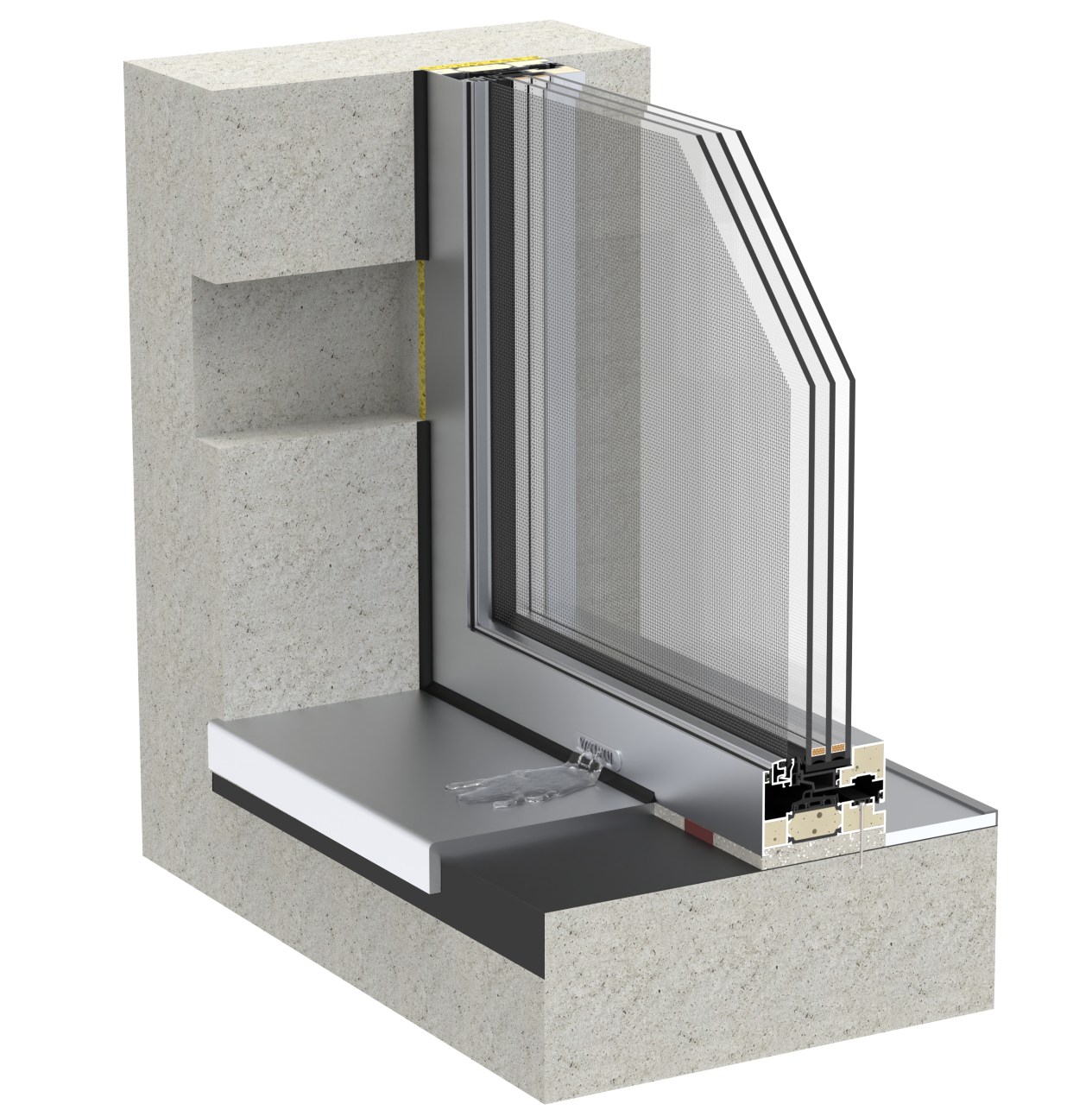

Product Parameters
Specifications
Profile

Profile Thickness: 4 1/4"(108mm)

Thickness: 1/16"(1.8mm)

Sash

Screen: 48 Mesh High Transmittance Screen / 304 Stainless Steel Screen / (Inward-opening)

Surface Treatment

Austria Tiger Powder Spraying

Glass

Fixed: 3/16"(5mm)+11/16"(27Ar)+3/16"(5mm) Glass Rabbet: 2"(50mm)

Sash: 3/16"(5mm)+1 1/16"(27Ar)+3/16"(5mm) Glass Rabbet: 1 5/8"(43mm)

Hardware

Handle Glass Sash: Germany HOPPE Mosquito Net: Customized

Transmission: NLY Customized

Technologies

Seamless Welding / Frame: Cavity Foam Filling / Non-return Drainage System / Integrally Welded Glazing Bead

View full details
Why You'll Love It

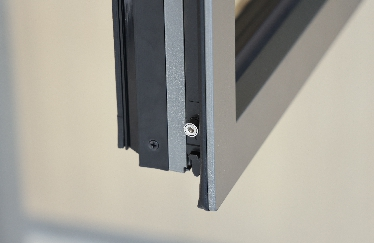

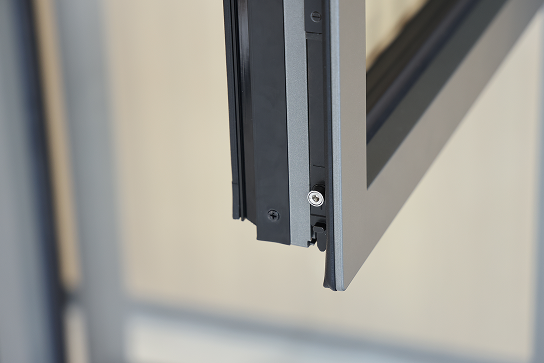

R7 Corner Design
Avoid sharp corners to reduce scratching.

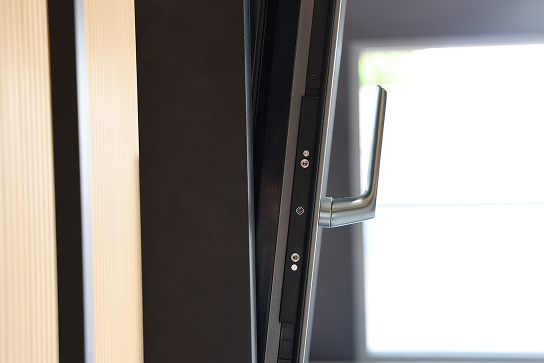

LEAWOD Transmission System
LEAWOD customized hardware system for window.

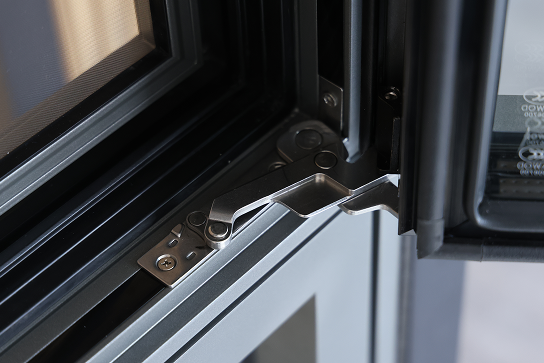

Tilt Turn Function
The tilt and turn function allows ventilation without opening the whole sash.
Flush Design
The sash and the frame are in the same plane,and there are no protrusions.

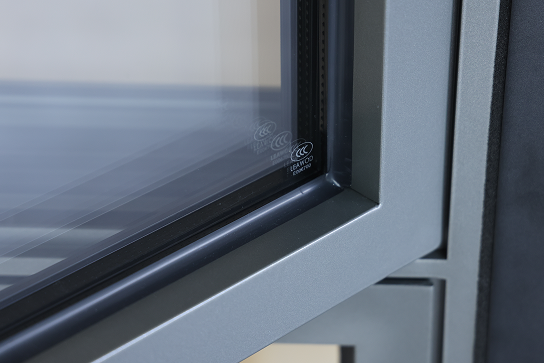

Double Argon Filling Glass
Double glazing tempered insulting with Argon filling better for soundproof.
