DOOR & WINDOWS
5.0

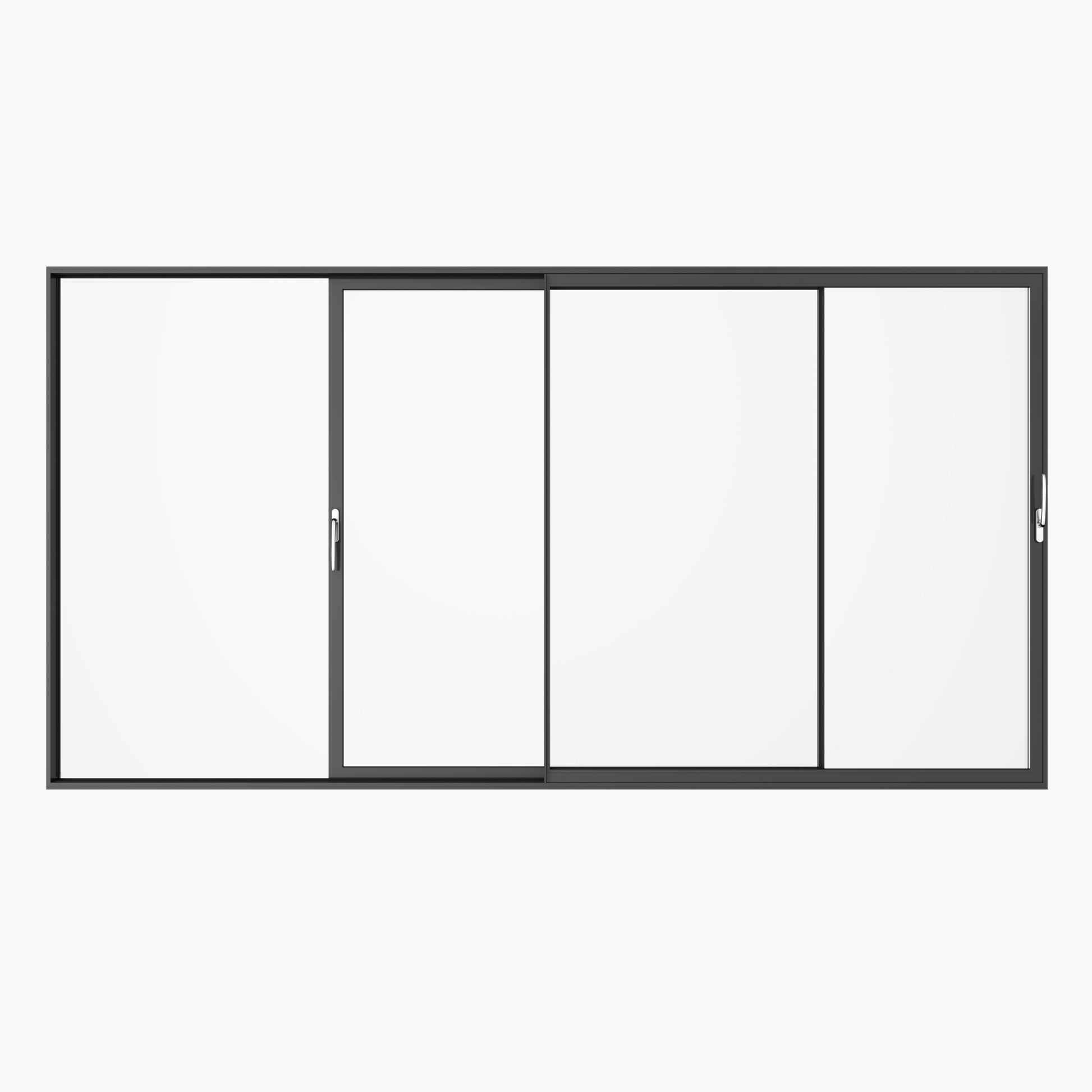

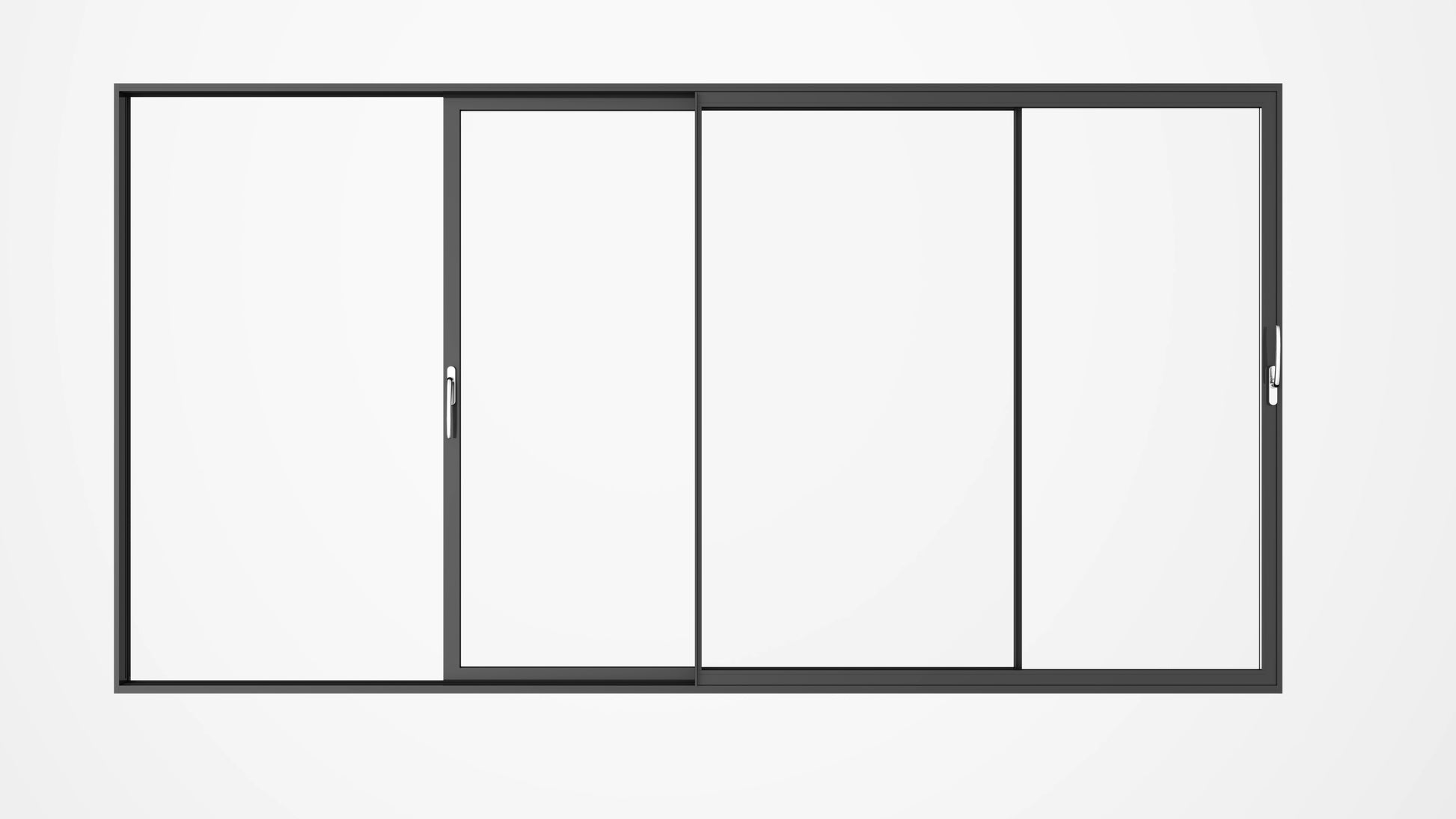

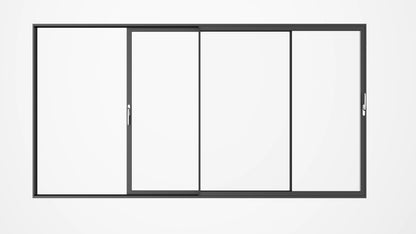

NDL162-T

Sash Width
3 1/4"(83mm)
Frame Width
1 3/16"(30mm)
Depth of Profile
6 3/8 (162mm)
REQUEST A QUOTE
Product Parameters
Specifications
Profile

Thickness: 1/16"(2.0mm)

Profile Thickness: 6 3/8"(162mm)

Sash

Optional: GSM60 External Sliding Screen Door (48 Mesh High Transmittance Screen / 304 Stainless Steel Screen / 316 Stainless Steel Screen)

Surface Treatment

Austria Tiger Powder Spraying

Glass

Fixed: 1/4"(6mm)+1 1/16"(27Ar)+1/4"(6mm)

Sash: 1/4"(6mm)+1 1/16"(27Ar)+1/4"(6mm) Glass Rabbet: 1 1/2"(38mm)

Hardware

Handle: Optional: Germany HOPPE

Transmission: Optional: Germany G-U

Technologies

Sash: Seamless Welding

Frame Sill: Cavity Foam Filling

View full details
Why You'll Love It

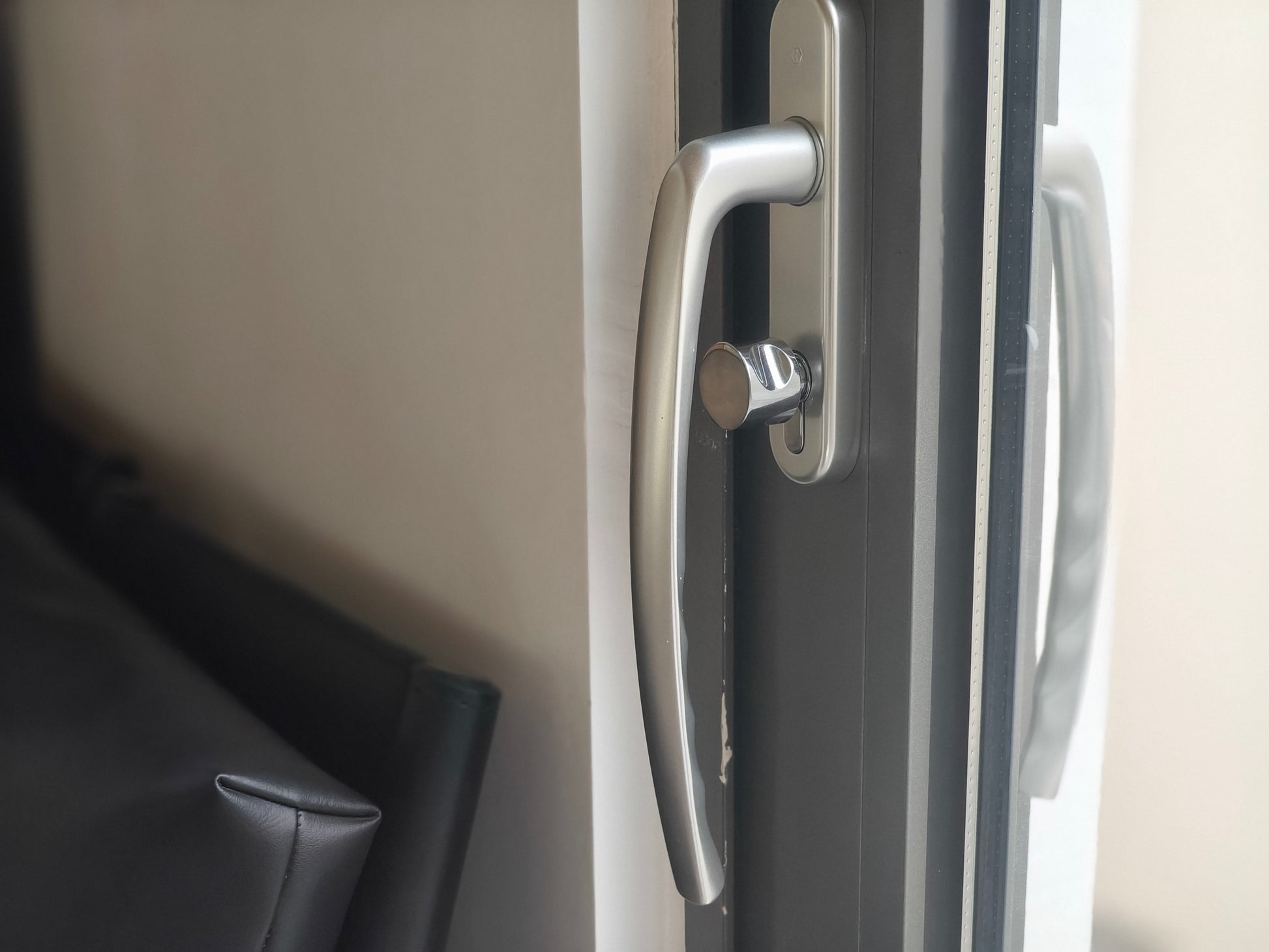

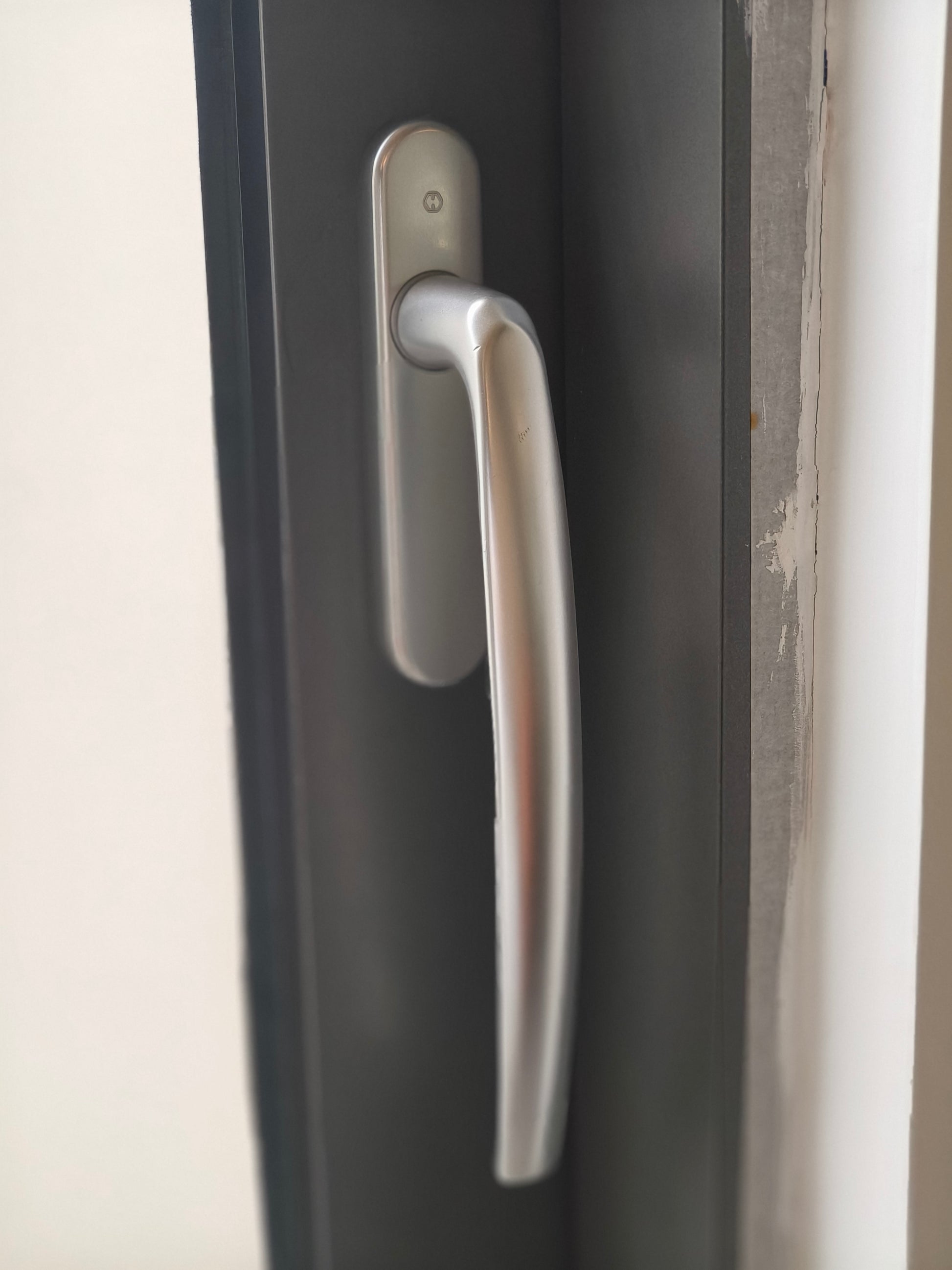

Germany HOPPE Lifting Handle
It features a gentle rebound function, automatically decelerating and cushioning when you release the handle, providing greater safety and more reassuring.

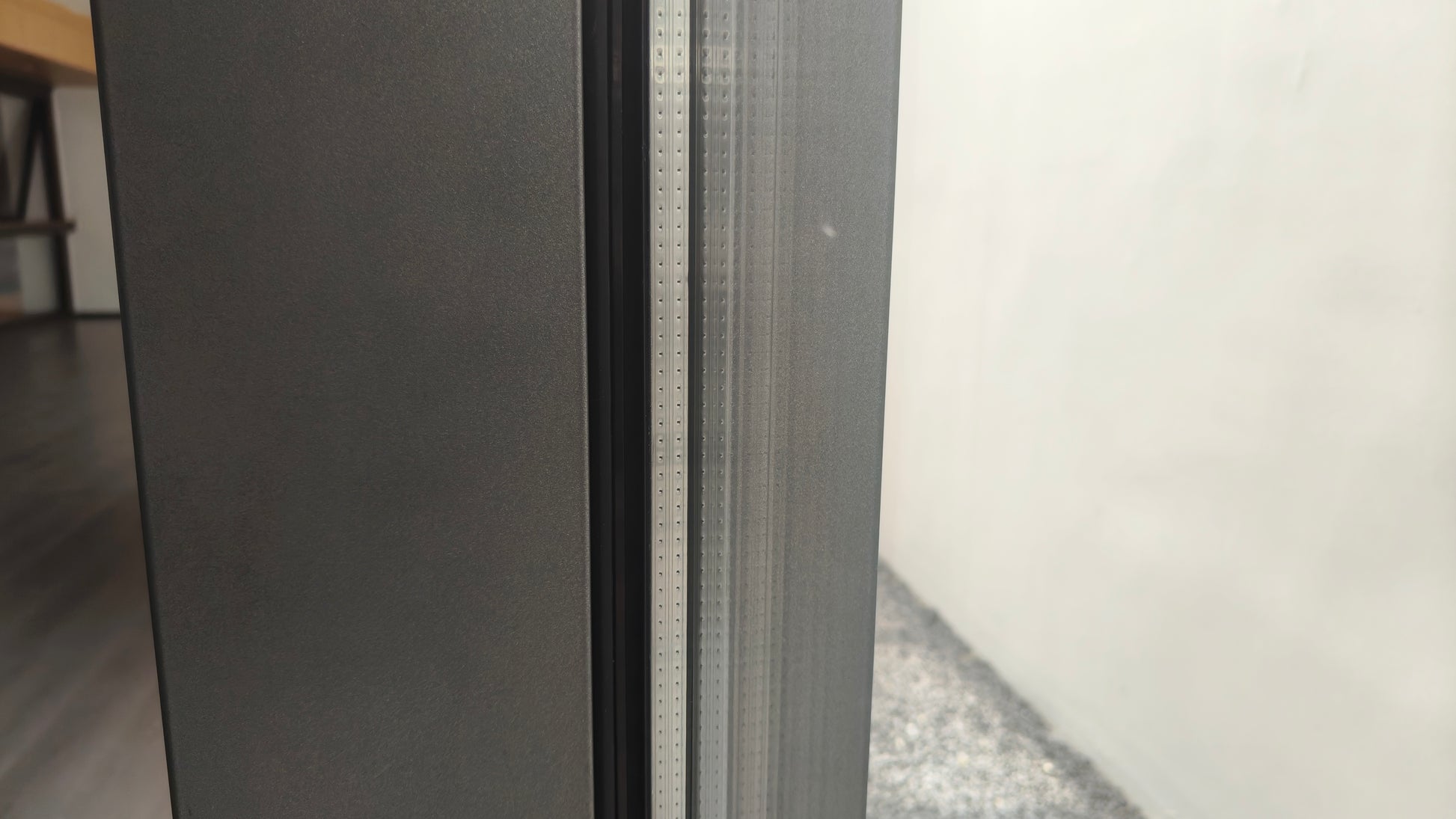

Argon Filling Glass
Double-layered tempered insulating glass, filled with inert gas, enhances sound insulation and thermal performance.

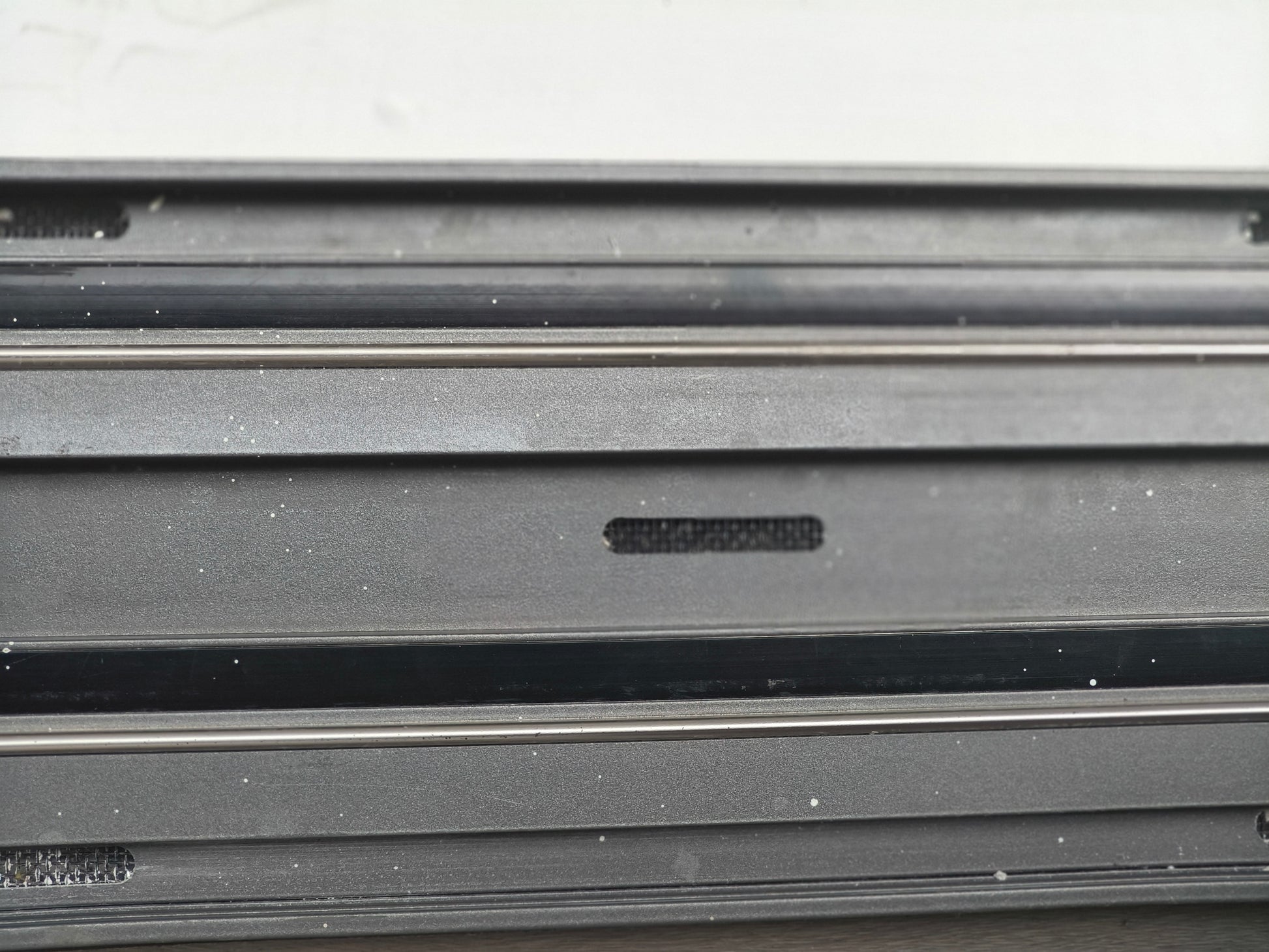

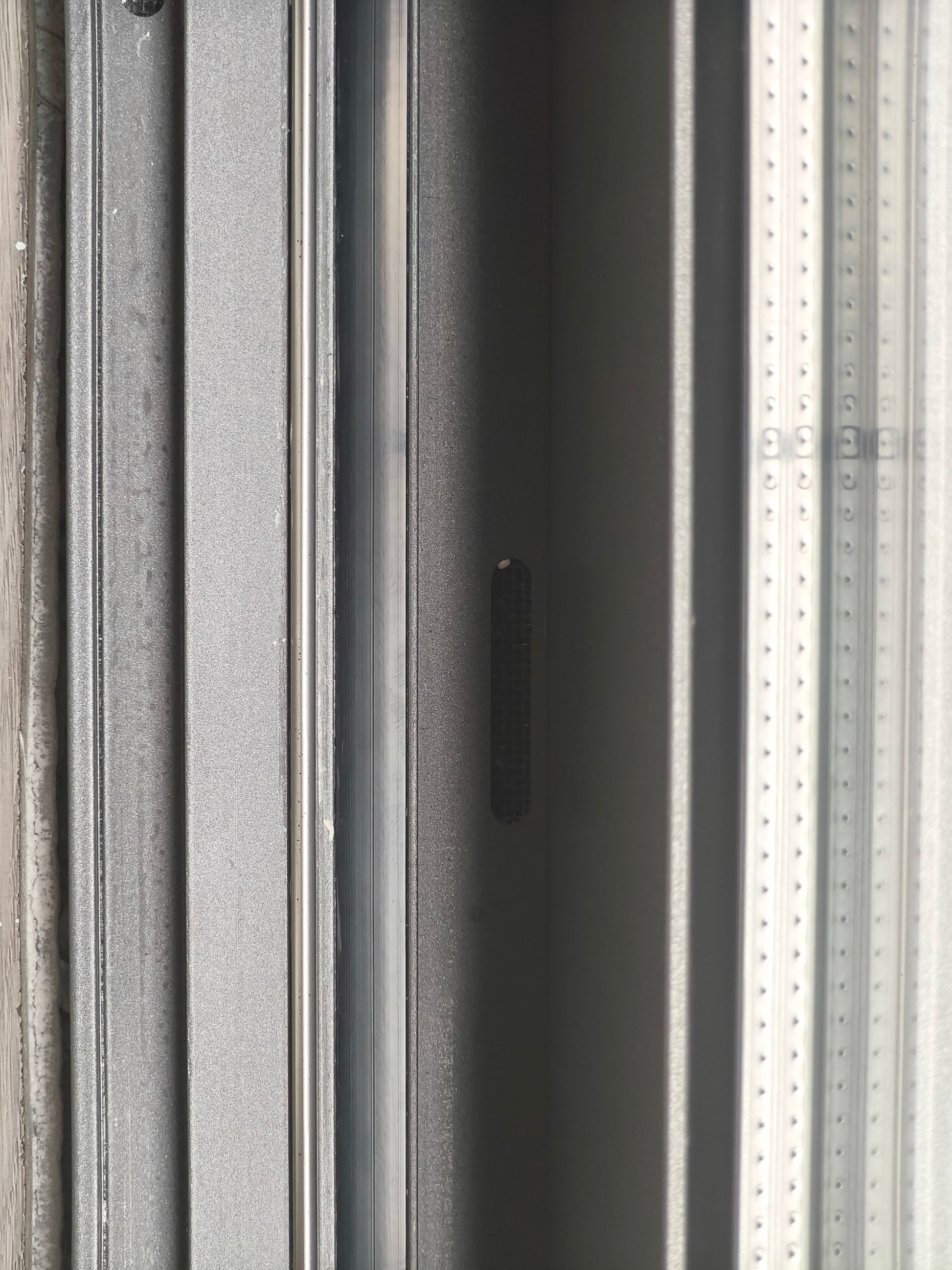

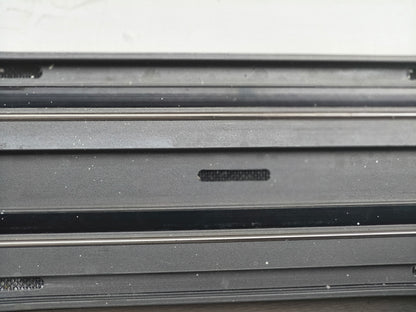

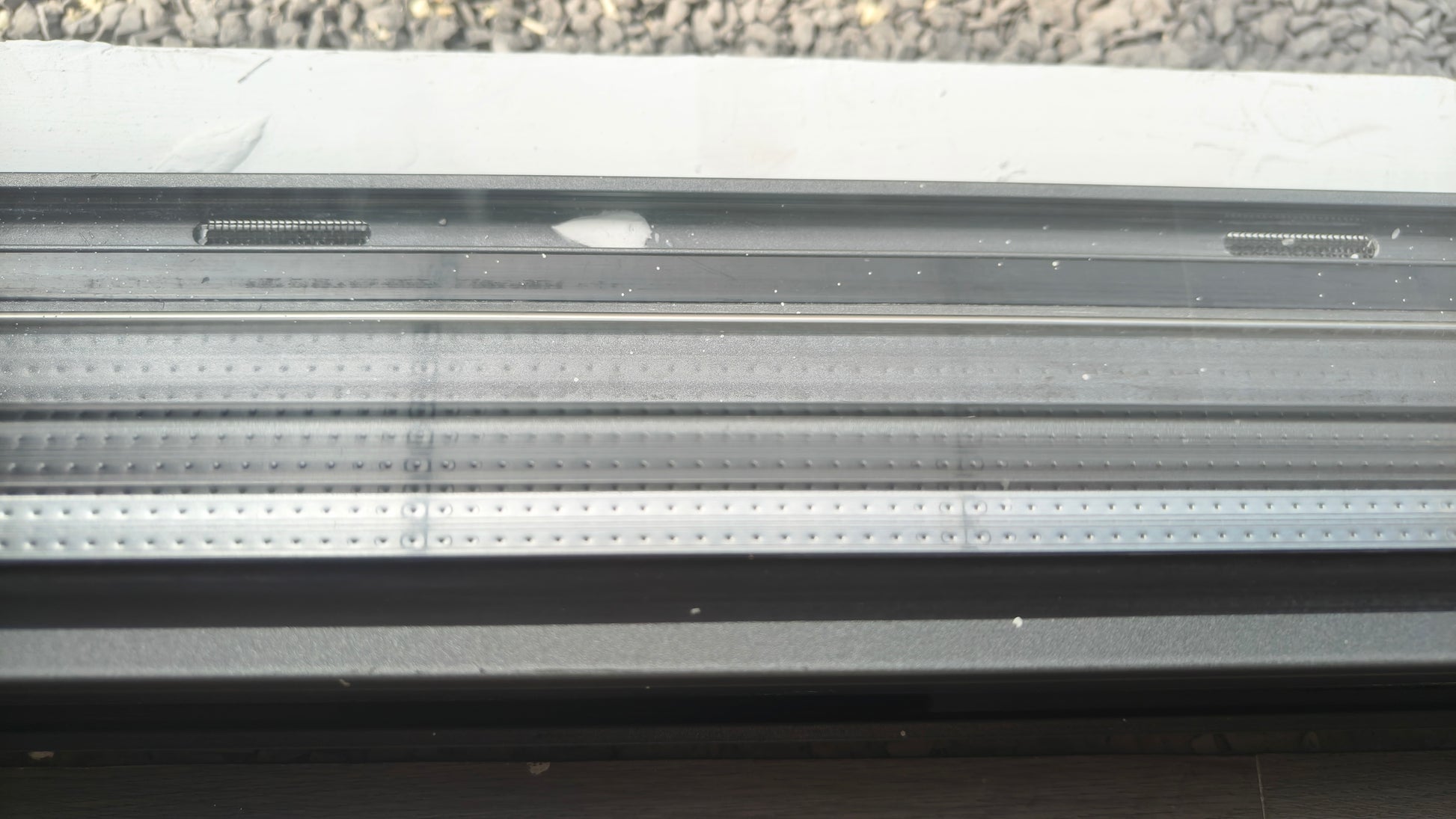

Hidden Drainage
The hidden drainage structure combined with a water-blocking lower track forms a "prevention-drainage" closed loop.

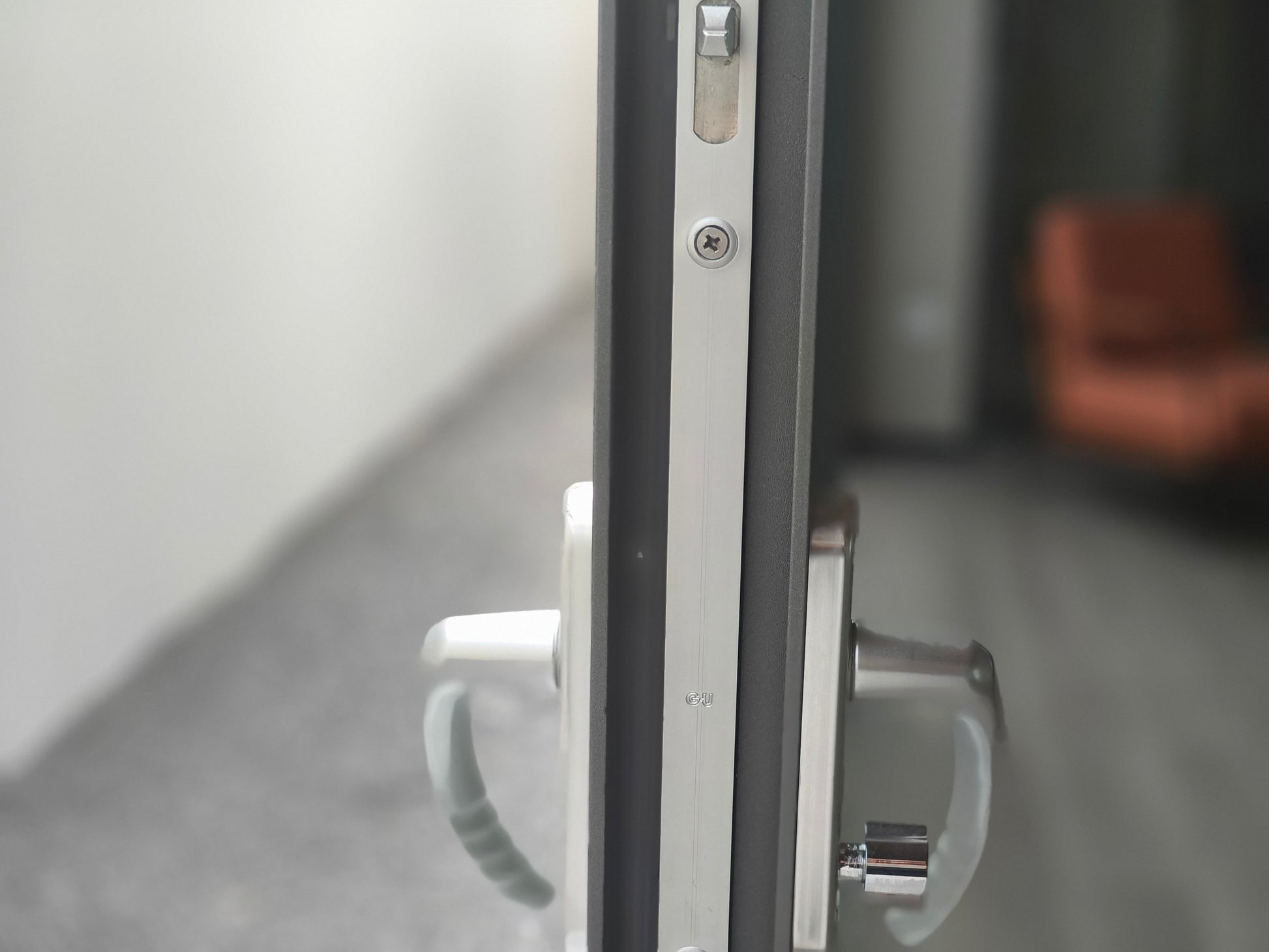

Strike plate
Adopt Germany G-U lock point system.
Reinforced Angle
More safety,strong and durable.
High-Strength Glass-to-Profile Connection
Pa66 nylon thermal break strips and a multi-cavity structure are used to effectively block energy transfer between indoors and outdoors.

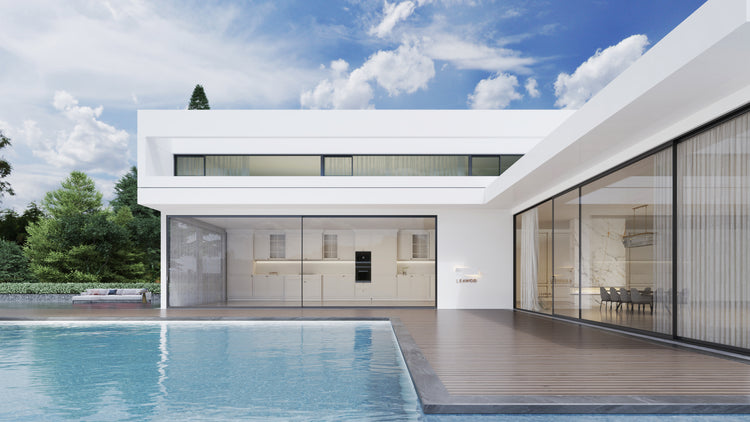

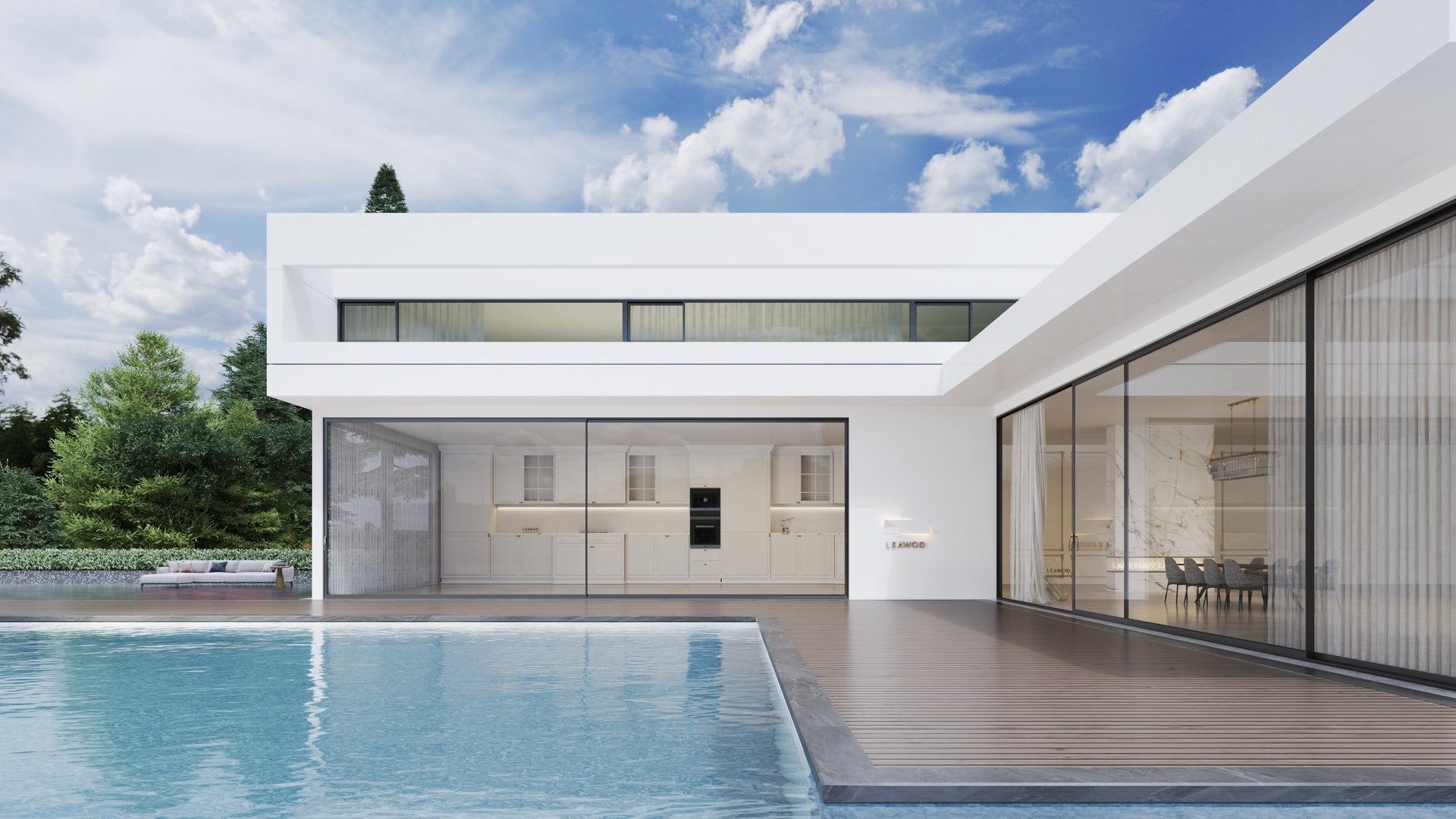

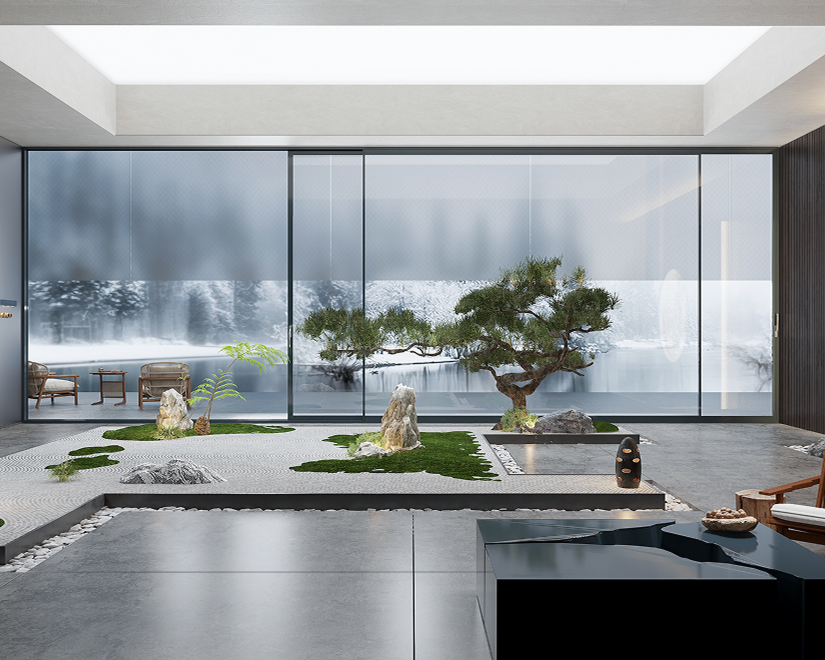

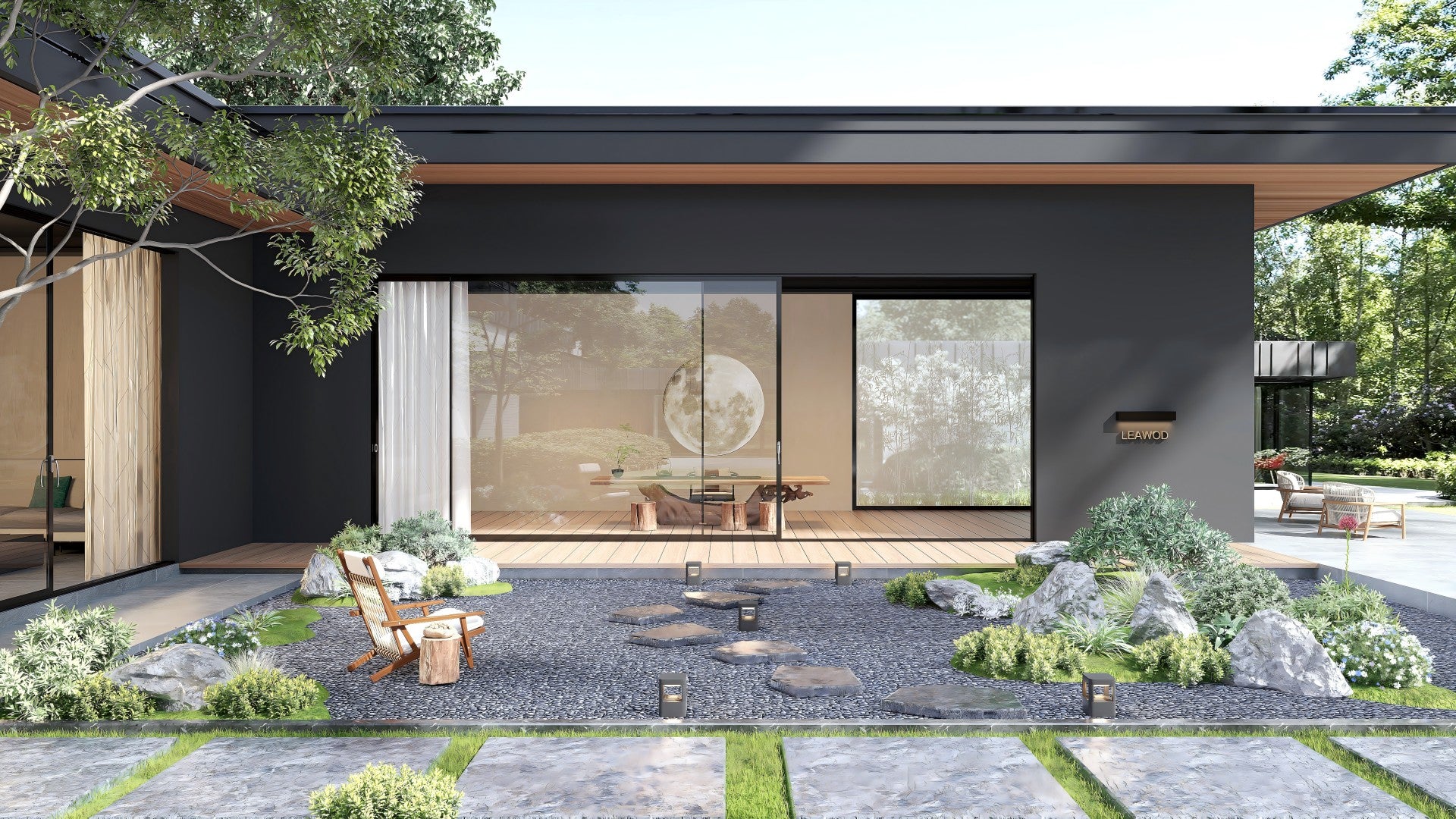

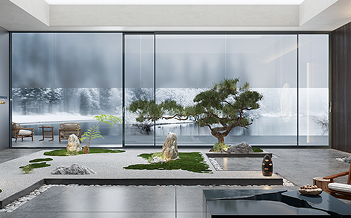

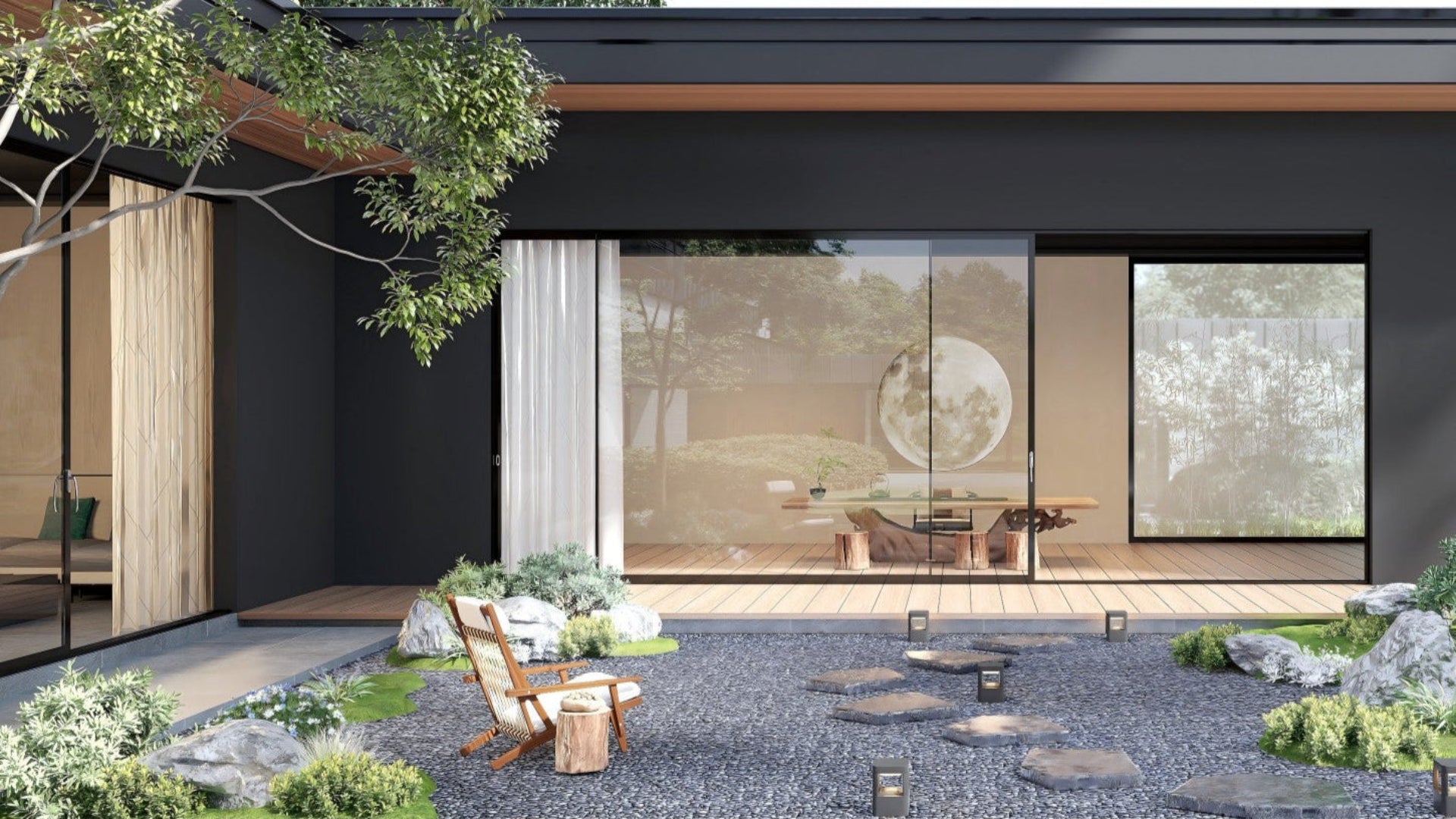

Bringing Light and Life Into Every Space
