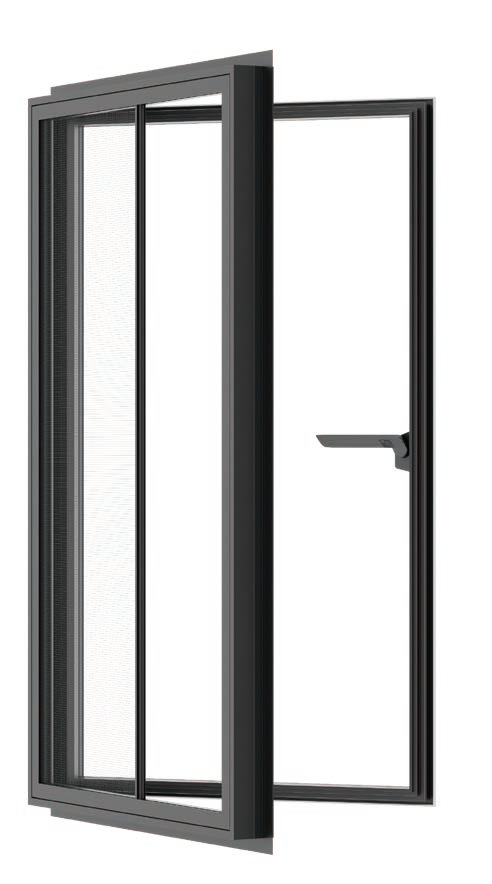

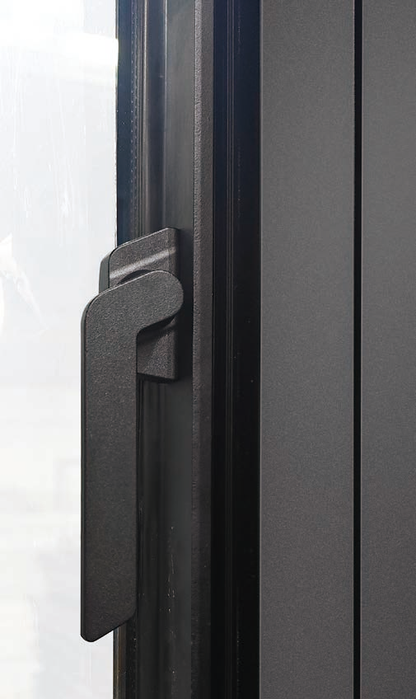

NWA120

REQUEST A QUOTE
Product Parameters
Specifications
U-Value

1.47 W/ m2·K

0.260 BTU/h·ft2·℉

Air Leakage

Class AW According to AAMA/WDMA/CSA 101

Water Tightness

Class AW According to AAMA/WDMA/CSA 101

Wind Resistance

Class AW According to AAMA/WDMA/CSA 101

Sound Insulation

40dB

Aluminum Profile & Thickness

6063-T5 Aluminum

0.07" (1.8mm)

Standard Glass Configuration

3/16"+ 13/16"Ar+3/16" (5mm+20Ar+5mm) Clear Glass

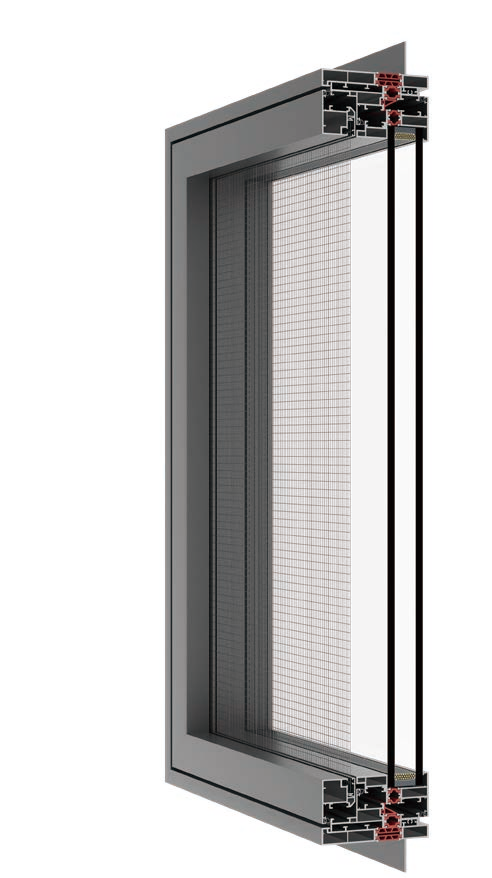

System Basic Depth

Frame: 4 3/4" (120mm)

Swing Glass Panel: 3 3/16" (81mm)

Profile Face Width

Frame: 13/16" (20mm)

Swing Frame: 2" (50mm)

Suggested Size (Swing Panel)

Height: 19 11/16" ~ 72" (500 ~ 1830mm)

Width: 19 11/16" ~ 29 1/2" (500 ~ 750mm)

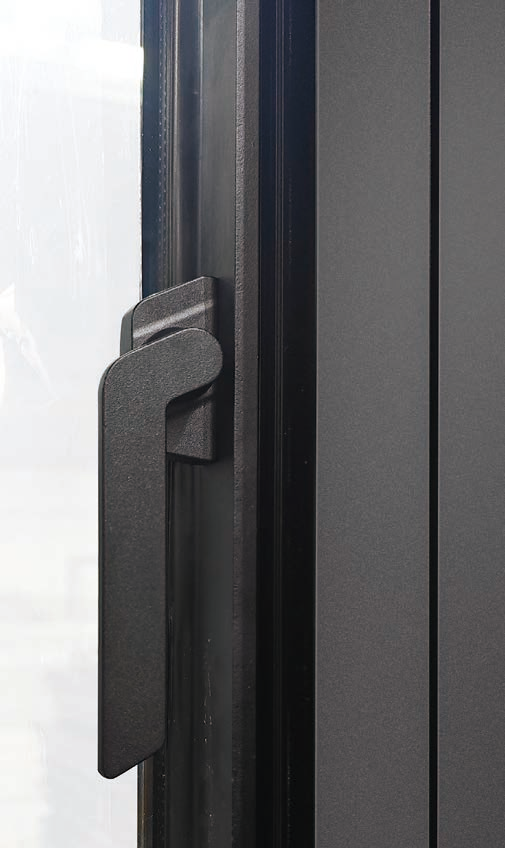

Security

Multi-point lock

Colors

PVDF Black / White / Gray or Custom Colors

View full details
Why You'll Love It
AUTOMATIC REBOUND DROP SEALING
As your door gracefully closes, our innovative sealing strip descends effortlessly, forming a dual barrier against the elements. With each opening, it ascends just as smoothly, ensuring unobstructed entry and exit while maintaining the integrity of your home’s security and energy efficiency. Experience the future of home protection with our automatic sealing technology today.

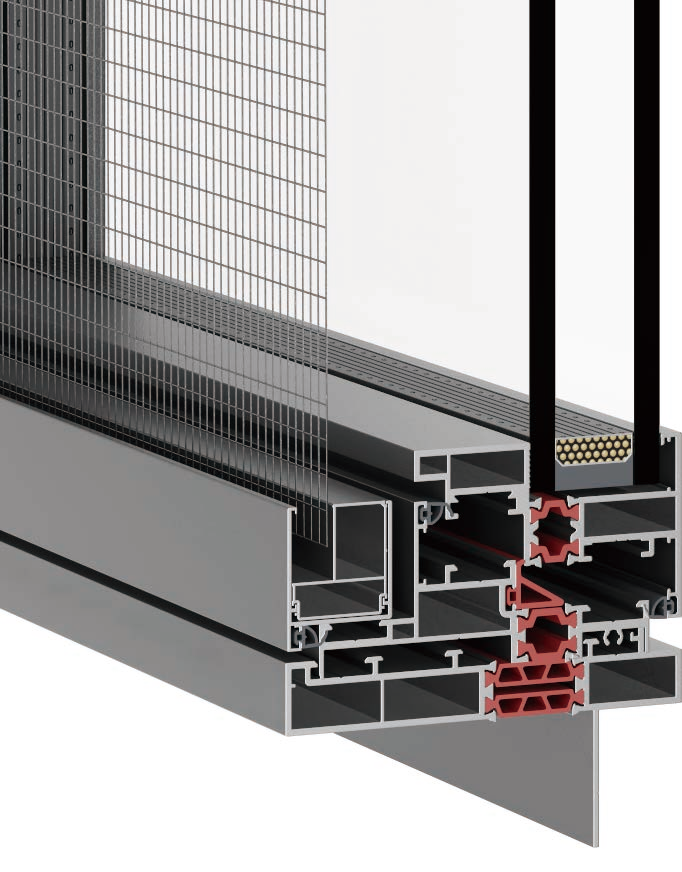

THERMAL INSULATED & ENERGY SAVING
When your door closes, advanced hidden seals automatically descend, compressing against the track to create a dual cavity seal. This ingenious design effectively blocks air and water infiltration, ensuring energy efficiency and thermal insulation. Not only does it save on energy costs by keeping the warmth in and the cold out, but it also significantly reduces noise pollution, creating a peaceful sanctuary right at your doorstep. With our doors, you’re not just making an entry – you’re securing a fortress of comfort and tranquility
